B512F-2T

Active

Sensata-Crydom

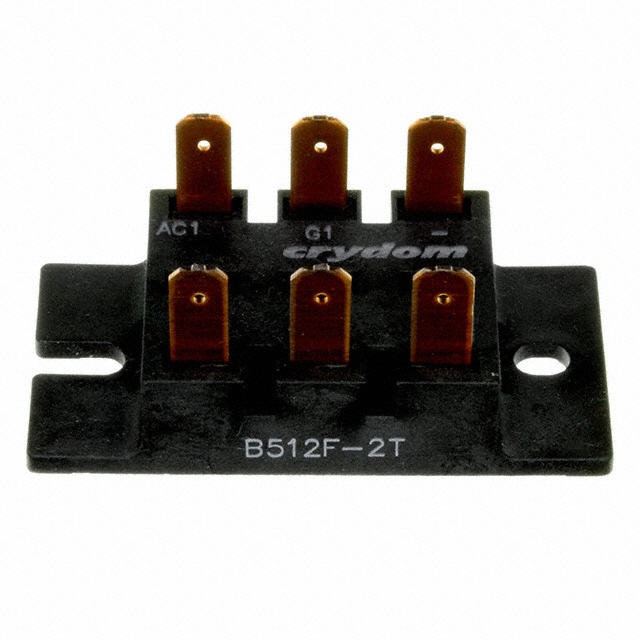

MOD DIODE SCR 25A 240VAC .250"QC

Search across all available documentation for this part.

Active

Sensata-Crydom

MOD DIODE SCR 25A 240VAC .250"QC

Technical Specifications

Parameters and characteristics for this part

Specification	B512F-2T

Current - Gate Trigger (Igt) (Max) [Max]	60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	250 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes [custom]	2
Number of SCRs, Diodes [custom]	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	600 V

Part	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Structure	Voltage - Gate Trigger (Vgt) (Max)
Sensata-Crydom B512SE-2T	600 V	250 A	60 mA	-40 °C	125 ¯C	Chassis Mount	Module	2	2	Bridge Single Phase - SCRs/Diodes (Layout 1)	2.5 V
Sensata-Crydom B512FSE-2T	600 V	250 A	60 mA	-40 °C	125 ¯C	Chassis Mount	Module	2	2	Bridge Single Phase - SCRs/Diodes (Layout 1)	2.5 V
Sensata-Crydom B512F-2-YEC	600 V	250 A	60 mA	-40 °C	125 ¯C	Chassis Mount	Module with Isolation Barriers	2	2	Bridge Single Phase - SCRs/Diodes (Layout 1)	2.5 V
Sensata-Crydom B512F-2T	600 V	250 A	60 mA	-40 °C	125 ¯C	Chassis Mount	Module	2	2	Bridge Single Phase - SCRs/Diodes (Layout 1)	2.5 V
Sensata-Crydom B512F-2	600 V	250 A	60 mA	-40 °C	125 ¯C	Chassis Mount	Module	2	2	Bridge Single Phase - SCRs/Diodes (Layout 1)	2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 600 V Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module
