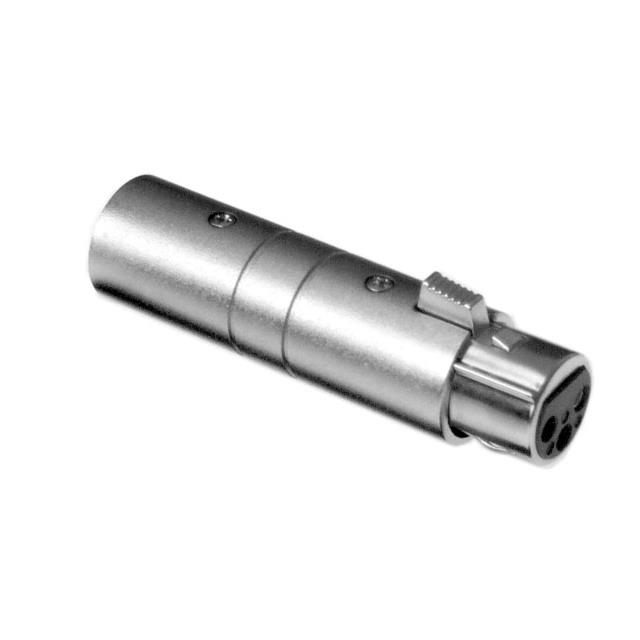

AC3F3MBW

Active

AMPHENOL AUDIO

CONN ADAPTER 3P-3P F-M INLINE

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN ADAPTER 3P-3P F-M INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	AC3F3MBW

Connector Style	Standard
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Male Pins
Fastening Type	Detent Lock, Push-Pull
Features	Locking Mechanism
Housing Color	Black
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	3
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shell Size - Insert (Convert From)	XLR
Shell Size - Insert (Convert To) [custom]	XLR
Shielding	Unshielded

Part	Shell Finish	Fastening Type	Color	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Primary Material	Contact Finish - Mating	Shell Material	Shell Size - Insert	Features	Ingress Protection	Convert From (Adapter End)	Orientation (Convert From)	Number of Positions (Convert From)	Convert To (Adapter End)	Housing Color	Connector Style	Orientation (Convert To)	Shell Size - Insert (Convert To) [custom]	Shell Size - Insert (Convert From)	Shielding	Mounting Feature
AMPHENOL AUDIO AC3F	Nickel	Latch Lock	Silver	Female Sockets Plug	Free Hanging (In-Line)	-25 °C	75 ░C	Keyed	Metal	Silver	Zinc Die Cast	XLR	Backshell Cable Clamp	IP40
AMPHENOL AUDIO AC3F3MBW		Detent Lock Push-Pull			Free Hanging (In-Line)								Locking Mechanism		Female Sockets	Keyed	3	Male Pins	Black	Standard	Keyed	XLR	XLR	Unshielded
AMPHENOL AUDIO AC3FDZB	Polyester	Latch Lock	Black	Female Sockets Plug		-25 °C	75 ░C	Keyed	Metal	Silver	Zinc Die Cast	XLR		IP40											Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Circular Connector Standard 3/3 Female Sockets/Male Pins Free Hanging (In-Line)
