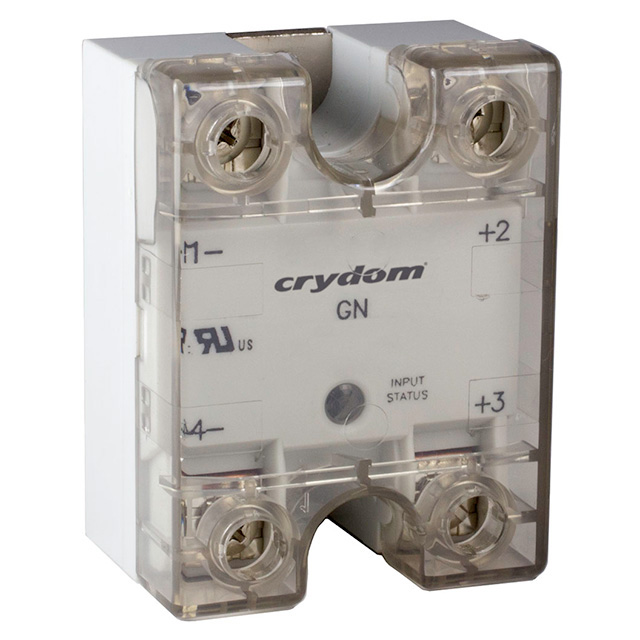

84137860
ActiveSensata-Crydom
SSR RELAY SPST-NO 15A 1-100V
Deep-Dive with AI
Search across all available documentation for this part.
84137860
ActiveSensata-Crydom
SSR RELAY SPST-NO 15A 1-100V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 84137860 |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 15 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) [Max] | 50 mOhms |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 3.5 V |
| Voltage - Load [Max] | 100 V |
| Voltage - Load [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 109.85 | |
| 10 | $ 104.62 | |||
| 50 | $ 99.86 | |||
| 100 | $ 96.93 | |||
Description
General part information
841378 Series
Solid State SPST-NO (1 Form A) Hockey Puck
