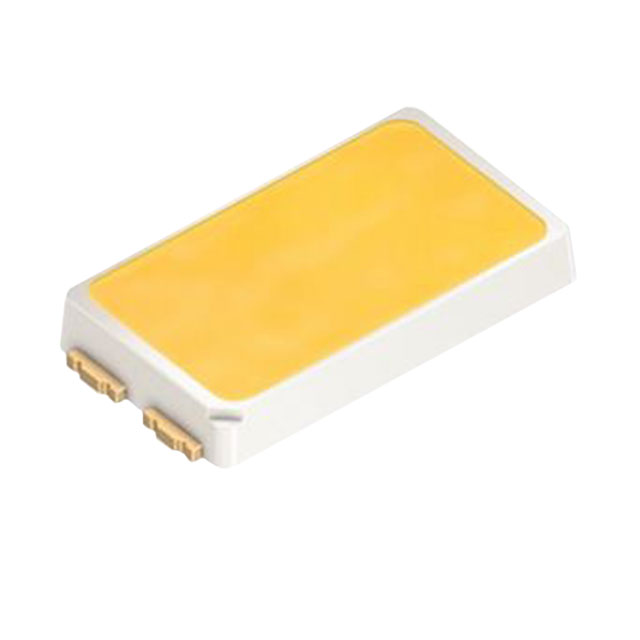

LUW JDSH.EC-FTGP-5E8G-L1N2

Active

ams-OSRAM USA INC.

LED DURIS E5 COOL WHT 5700K 5630

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED DURIS E5 COOL WHT 5700K 5630

Technical Specifications

Parameters and characteristics for this part

Specification	LUW JDSH.EC-FTGP-5E8G-L1N2

CCT (K)	5700 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	180 mA
Current - Test	120 mA
Flux @ 25°C, Current - Test	54 lm
Flux @ 25°C, Current - Test [Max]	61 lm
Flux @ 25°C, Current - Test [Min]	47 lm
Height - Seated (Max) [Max] [z]	0.034 in
Height - Seated (Max) [Max] [z]	0.87 mm
Lumens/Watt @ Current - Test	145 lm/W
Mounting Type	Surface Mount
Package / Case	4-SMD, Flat Lead Exposed Pad
Size / Dimension [x]	5.3 mm
Size / Dimension [x]	0.209 "
Size / Dimension [y]	0.118 in
Size / Dimension [y]	3 mm
Thermal Resistance of Package [diameter]	41 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.1 V

Part	CRI (Color Rendering Index)	Mounting Type	Current - Max [Max]	CCT (K)	Viewing Angle	Lumens/Watt @ Current - Test	Package / Case	Color	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [diameter]	Voltage - Forward (Vf) (Typ)
ams-OSRAM USA INC. LUW JDSH.EC-FTGP-5E8G-L1N2	80	Surface Mount	180 mA	5700 K	120 °	145 lm/W	4-SMD Flat Lead Exposed Pad	Cool White	47 lm	61 lm	54 lm	0.118 in	5.3 mm	0.209 "	3 mm	120 mA	0.034 in	0.87 mm	41 °C/W	3.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting DURIS® E 5 White, Cool 5700K 3.1V 120mA 120° 4-SMD, Flat Lead Exposed Pad
