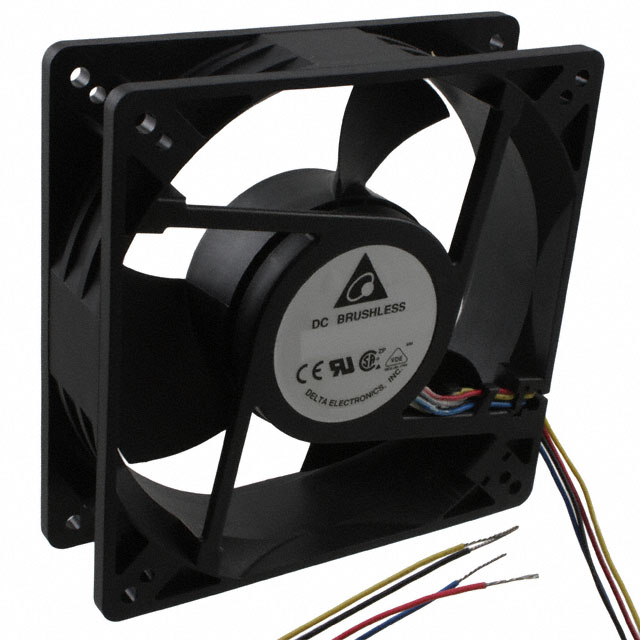

EFB1324SHE-EP
ActiveDelta Electronics
FAN AXIAL 127X38MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
EFB1324SHE-EP
ActiveDelta Electronics
FAN AXIAL 127X38MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFB1324SHE-EP |
|---|---|
| Air Flow | 5.6 mł/min |
| Air Flow | 200 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 750 mA |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), GR-487 (Salt Fog Protection), PWM Control |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 58.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 18 W |
| RPM | 4600 RPM |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 127 mm |
| Static Pressure | 188.6 Pa |
| Static Pressure | 0.757 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 18 VDC |
| Weight | 370.13 g |
| Weight | 0.816 lb |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 79.71 | |
| 10 | $ 72.12 | |||
| 30 | $ 62.63 | |||
| 60 | $ 58.83 | |||
| 120 | $ 51.24 | |||
Description
General part information
EFB1324 Series
Fan Tubeaxial 24VDC Square - 127mm L x 127mm H Ball 200.0 CFM (5.60m³/min) 4 Wire Leads
