09628241520

Obsolete

HARTING Technology Group

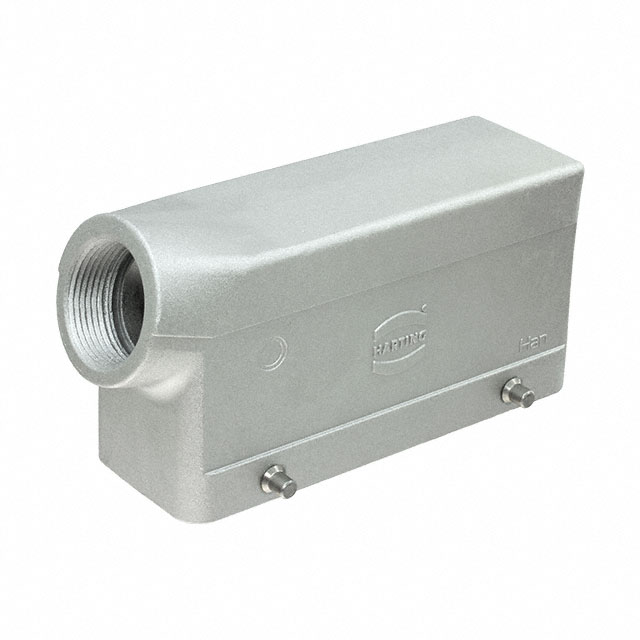

CONN HOOD SIDE ENTRY SZ24B PG21

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

CONN HOOD SIDE ENTRY SZ24B PG21

Technical Specifications

Parameters and characteristics for this part

Specification	09628241520

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.461 in
Size / Dimension [z]	62.5 mm
Style	Side Entry
Thread Size	PG21

Part	Lock Location	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Size	Housing Material	Size	Connector Type	Style
HARTING Technology Group 09628241520	Locking Clip (2) on Base Bottom	120 mm	2.461 in	4.724 "	1.693 in	62.5 mm	43 mm	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	PG21	Aluminum Die Cast	24 B	Hood	Side Entry
