364M2795

Active

Winchester Interconnect

CONN BNC JACK R/A 75 OHM PCB

Search across all available documentation for this part.

Active

Winchester Interconnect

CONN BNC JACK R/A 75 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	364M2795

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polypropylene (PP)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms
Ingress Protection	Weatherproof
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	2
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Body Material	Connector Style	Mounting Type	Mounting Feature	Center Contact Plating	Voltage Rating	Insertion Loss	Shield Termination	Housing Color	Mating Cycles	Body Finish	Number of Ports	Frequency - Max [Max]	Center Contact Material	Ingress Protection	Connector Type	Fastening Type	Impedance	Contact Termination
Winchester Interconnect 364M2795	165 °C	-40 °C	Polypropylene (PP)	Brass	BNC	Panel Mount Right Angle Through Hole	Bulkhead - Front Side Nut	Gold	500 V	0.2 dB	Solder	Silver	500	Nickel	2	1 GHz	Phosphor Bronze	Weatherproof	Female Socket Jack	Bayonet Lock	75 Ohms	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

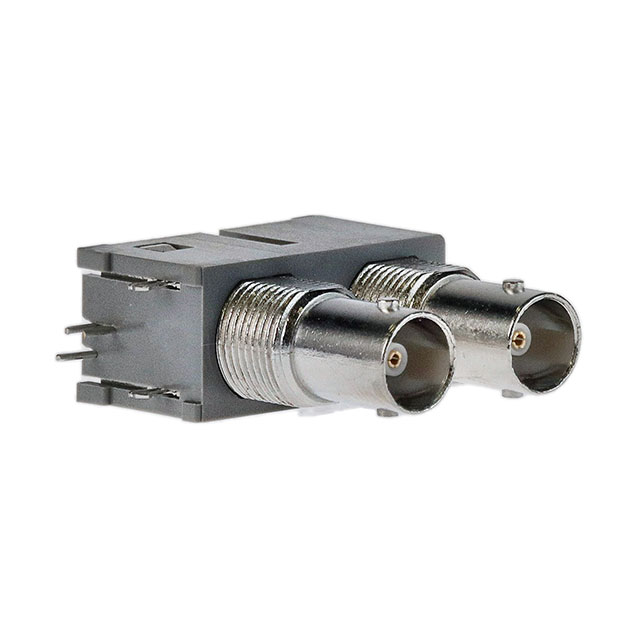

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
