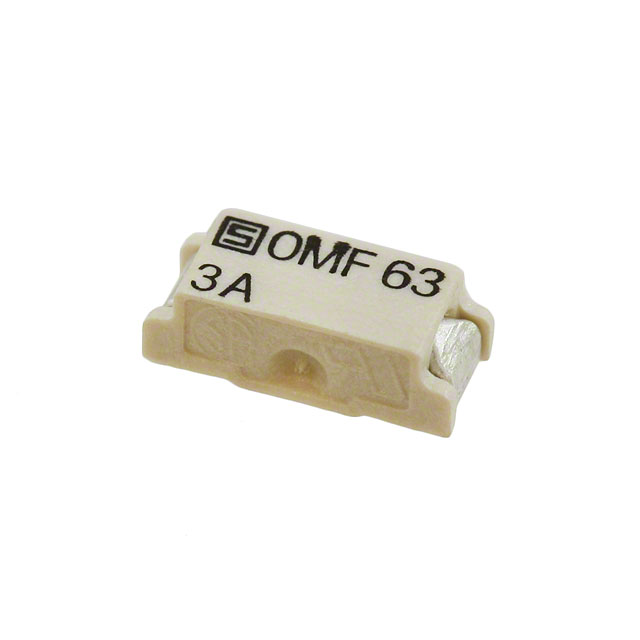

3402.0014.11
ActiveSCHURTER Inc.
FUSE BRD MNT 3A 63VAC 63VDC 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3402.0014.11
ActiveSCHURTER Inc.
FUSE BRD MNT 3A 63VAC 63VDC 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3402.0014.11 |
|---|---|
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 3 A |
| Fuse Type | Board Mount |
| Melting I²t | 1.3 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD, J-Lead |
| Response Time | Fast Blow |
| Size / Dimension [x] | 7.4 mm |
| Size / Dimension [x] | 0.291 " |
| Size / Dimension [y] | 0.122 in |
| Size / Dimension [y] | 3.1 mm |
| Size / Dimension [z] | 2.6 mm |
| Size / Dimension [z] | 0.102 " |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 63 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.39 | |
| 5 | $ 1.15 | |||
| 10 | $ 1.06 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.81 | |||
| 300 | $ 0.72 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.62 | |||
| 5000 | $ 0.51 | |||
Description
General part information
3402.0014 Series
3 A 63 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
