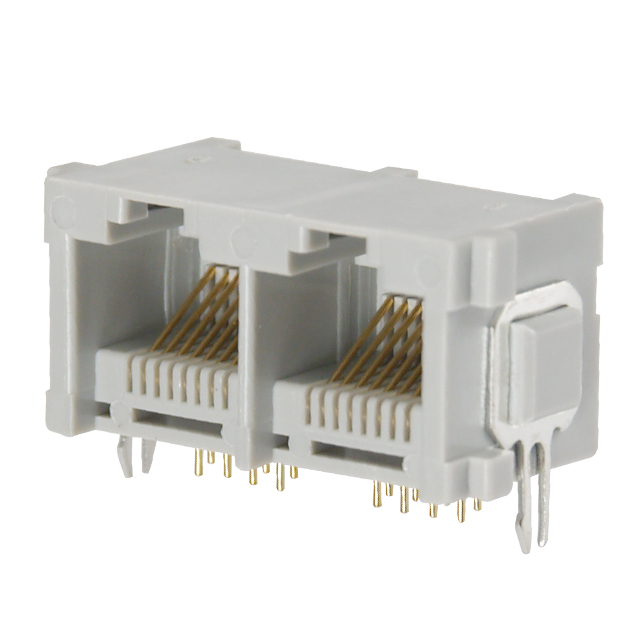

GAX-2-88

Active

Kycon, Inc.

GANGJACK 2PORT RT< 8P8C GREY ROH

Search across all available documentation for this part.

Active

Kycon, Inc.

GANGJACK 2PORT RT< 8P8C GREY ROH

Technical Specifications

Parameters and characteristics for this part

Specification	GAX-2-88

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	2
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	90 °
Shielding	Unshielded
Tab Direction	Up
Termination	Solder

Part	Orientation	Contact Finish Thickness	Contact Finish	Termination	Number of Ports	Connector Type	Shielding	Housing Material	LED Color	Mounting Type	Contact Material	Tab Direction	Number of Rows	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish Thickness
Kycon, Inc. GAX-2-64	90 °	Flash	Gold	Solder	2	Jack	Unshielded	Polybutylene Terephthalate (PBT)	Does Not Contain LED	Through Hole	Phosphor Bronze	Up	1	6p4c
Kycon, Inc. GAX-2-66-50	90 °		Gold	Solder	2	Jack	Unshielded	Polybutylene Terephthalate (PBT)	Does Not Contain LED	Through Hole	Phosphor Bronze	Up	1	6p6c (RJ11 RJ12 RJ14 RJ25)	50 µin	1.27 µm
Kycon, Inc. GAX-2-66	90 °	Flash	Gold	Solder	2	Jack	Unshielded	Polybutylene Terephthalate (PBT)	Does Not Contain LED	Through Hole	Phosphor Bronze	Up	1	6p6c (RJ11 RJ12 RJ14 RJ25)
Kycon, Inc. GAX-2-88	90 °	Flash	Gold	Solder	2	Jack	Unshielded	Polybutylene Terephthalate (PBT)	Does Not Contain LED	Through Hole	Phosphor Bronze	Up	1	8p8c (RJ45 Ethernet)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 5.06

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
