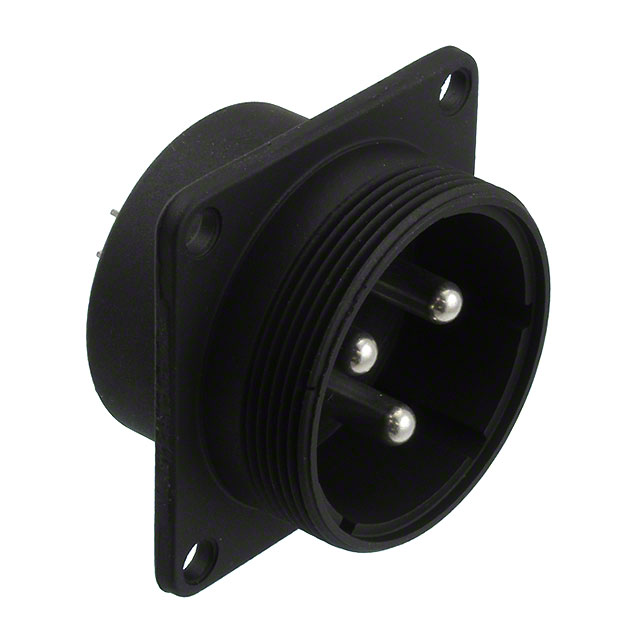

JR25WR-3P(71)

Active

Hirose Electric USA, Inc.

CONN RCPT MALE 3P SILV SLDR CUP

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT MALE 3P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JR25WR-3P(71)

Applications	Telecommunications, Industrial, Automotive
Cable Opening [diameter]	1.098 in
Cable Opening [diameter]	27.9 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Brass
Current Rating (Amps)	15 A
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Chromium
Shell Material	Aluminum Alloy
Shell Size - Insert	25
Voltage Rating	350 V, 250 VAC

Part	Ingress Protection	Applications	Connector Type	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Shell Material	Shell Size - Insert	Material Flammability Rating	Current Rating (Amps)	Voltage Rating	Number of Positions	Color	Insert Material	Primary Material	Contact Material	Orientation	Number of Positions
Hirose Electric USA, Inc. JR25WR-24S(71)	IP67/IP68 - Dust Tight Waterproof	Automotive Industrial Telecommunications	Receptacle Female Sockets	Flange	-25 °C	85 °C	Black Chromium	1.098 in	27.9 mm	78.7 µin	2 µm	Silver	Aluminum Alloy	25	UL94 V-0	5 A	100 VAC 140 VDC	24	Black	Phenol Formaldehyde (PF)	Metal	Brass	Keyed
Hirose Electric USA, Inc. JR25WR-24S(76)
Hirose Electric USA, Inc. JR25WR-4P(74)
Hirose Electric USA, Inc. JR25WR-16S(71)	IP67/IP68 - Dust Tight Waterproof	Automotive Industrial Telecommunications	Receptacle Female Sockets	Flange	-25 °C	85 °C	Black Chromium	1.098 in	27.9 mm	78.7 µin	2 µm	Silver	Aluminum Alloy	25	UL94 V-0	10 A	100 VAC 140 VDC		Black	Phenol Formaldehyde (PF)	Metal	Copper Alloy	Keyed	16
Hirose Electric USA, Inc. JR25WR-3P(71)	IP67/IP68 - Dust Tight Waterproof	Automotive Industrial Telecommunications	Male Pins Receptacle	Flange	-25 °C	85 °C	Black Chromium	1.098 in	27.9 mm	78.7 µin	2 µm	Silver	Aluminum Alloy	25	UL94 V-0	15 A	250 VAC 350 V		Black	Polyphenylene Sulfide (PPS)	Metal	Brass	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
