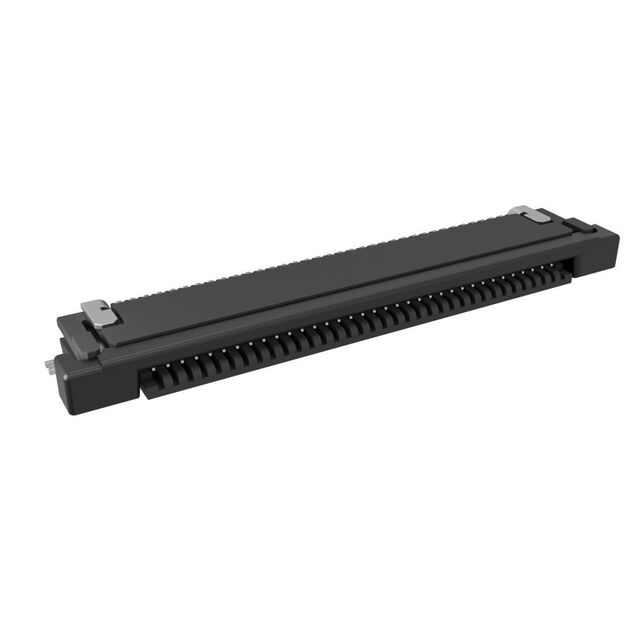

SFV34R-4STBE1HLF
ActiveAmphenol ICC (FCI)
CONN FPC TOP 34POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFV34R-4STBE1HLF
ActiveAmphenol ICC (FCI)
CONN FPC TOP 34POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFV34R-4STBE1HLF |
|---|---|
| Actuator Color | Beige |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC |
| Height Above Board | 1.8 mm |
| Height Above Board | 0.071 in |
| Housing Color | Black |
| Housing Material | Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 34 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
SFV34R Series
| Part | Number of Positions | Locking Feature | Features | Termination | Contact Finish | Contact Material | Connector/Contact Type | FFC, FCB Thickness [z] | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Actuator Color | Actuator Material | Voltage Rating | Height Above Board | Height Above Board | Pitch [x] | Pitch [x] | Flat Flex Type | Mounting Type | Housing Color | Cable End Type | Material Flammability Rating | Current Rating (Amps) | Mating Cycles | FFC, FCB Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 34 | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | Solder | Gold | Phosphor Bronze | Contacts Bottom | 0.3 mm 0.33 mm | 105 ░C | -55 °C | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Brown | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 1.8 mm | 0.071 in | 0.5 mm | 0.02 in | FFC FPC | Surface Mount Right Angle | Black | Tapered | UL94 V-0 | 0.5 A | 20 | |
Amphenol ICC (FCI) | 34 | Slide Lock | Solder | Gold | Phosphor Bronze | Contacts Top | 105 ░C | -55 °C | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Beige | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 1.8 mm | 0.071 in | 0.5 mm | 0.02 in | FFC FPC | Surface Mount Right Angle | Black | Tapered | UL94 V-0 | 0.5 A | 20 | 0.3 mm | ||
Amphenol ICC (FCI) | 34 | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | Solder | Gold | Phosphor Bronze | Contacts Bottom | 105 ░C | -55 °C | Polyamide (PA) Nylon Glass Filled Halogen Free | Black | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 1.8 mm | 0.071 in | 0.5 mm | 0.02 in | FFC FPC | Surface Mount Right Angle | Black | Straight Tapered | UL94 V-0 | 0.5 A | 20 | 0.33 mm | |
Amphenol ICC (FCI) | 34 | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | Solder | Gold | Phosphor Bronze | Contacts Bottom | 0.3 mm 0.33 mm | 105 ░C | -55 °C | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Black | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 1.8 mm | 0.071 in | 0.5 mm | 0.02 in | FFC FPC | Surface Mount Right Angle | Black | Straight Tapered | UL94 V-0 | 0.5 A | 20 | |
Amphenol ICC (FCI) | 34 | Slide Lock | Solder | Tin | Phosphor Bronze | Contacts Top | 0.3 mm 0.33 mm | 105 ░C | -55 °C | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Brown | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 1.8 mm | 0.071 in | 0.5 mm | 0.02 in | FFC FPC | Surface Mount Right Angle | Black | Notched | UL94 V-0 | 0.5 A | 20 | ||
Amphenol ICC (FCI) | 34 | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | Solder | Tin | Phosphor Bronze | Contacts Bottom | 105 ░C | -55 °C | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Black | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 1.8 mm | 0.071 in | 0.5 mm | 0.02 in | FFC FPC | Surface Mount Right Angle | Black | Tapered | UL94 V-0 | 0.5 A | 20 | 0.3 mm | |
Amphenol ICC (FCI) | 34 | Slide Lock | Solder | Gold | Phosphor Bronze | Contacts Top | 105 ░C | -55 °C | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Beige | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 1.8 mm | 0.071 in | 0.5 mm | 0.02 in | FPC | Surface Mount Right Angle | Black | Tapered | UL94 V-0 | 0.5 A | 20 | 0.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.08 | |
| 10 | $ 0.82 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.68 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 1.08 | ||
| 10 | $ 0.82 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.68 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.49 | |||
| Tape & Reel (TR) | 3000 | $ 0.44 | ||
| 6000 | $ 0.41 | |||
| 9000 | $ 0.39 | |||
| 15000 | $ 0.38 | |||
| 21000 | $ 0.37 | |||
Description
General part information
SFV34R Series
34 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
