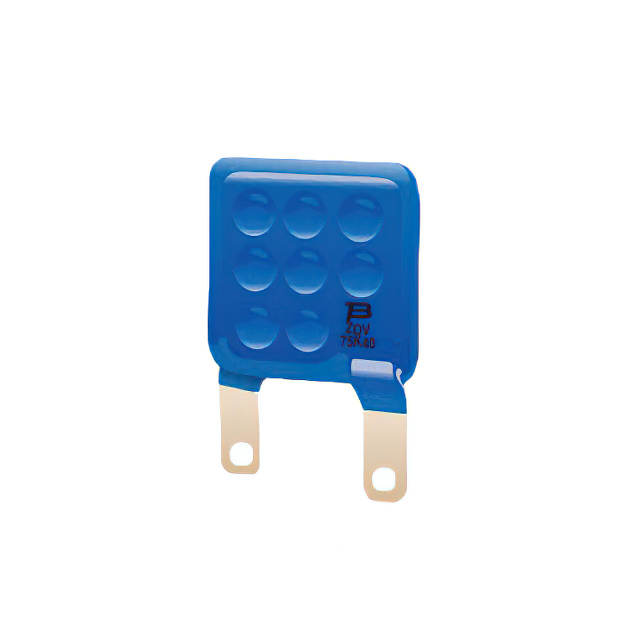

ZOV320K25E
ActiveBourns Inc.
VARISTOR 320 K 25 E
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZOV320K25E
ActiveBourns Inc.
VARISTOR 320 K 25 E
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZOV320K25E |
|---|---|
| Capacitance @ Frequency | 1240 pF |
| Current - Surge | 20 kA |
| Energy | 680 J |
| Maximum AC Volts [Max] | 320 V |
| Maximum DC Volts [Max] | 420 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Tabs |
| Package / Case [x] | 25 mm |
| Varistor Voltage (Max) [Max] | 561 V |
| Varistor Voltage (Min) [Min] | 459 V |
| Varistor Voltage (Typ) | 510 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 512 | $ 3.20 | |
Description
General part information
ZOV320K Series
510 V 20 kA Varistor 1 Circuit Through Hole Square 25mm, Tabs
Documents
Technical documentation and resources
