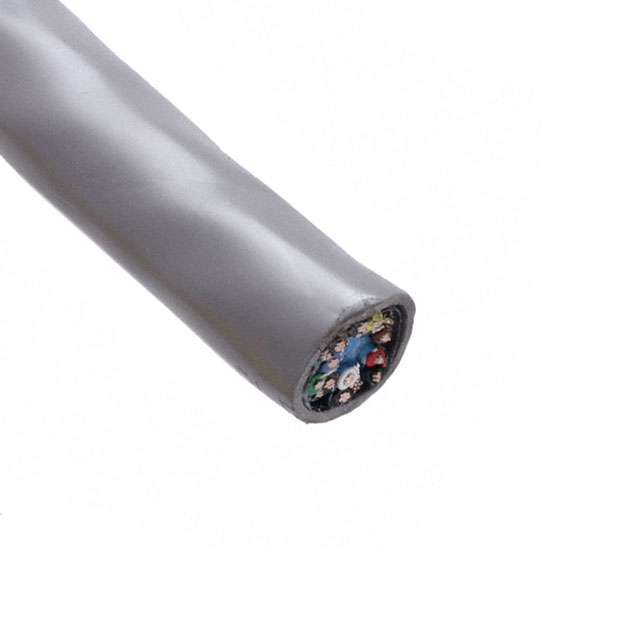

M13146 SL001

Active

ALPHA WIRE

MULTI-PAIR 12COND 20AWG

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 12COND 20AWG

Technical Specifications

Parameters and characteristics for this part

Specification	M13146 SL001

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	11.38 mm
Jacket (Insulation) Diameter [diameter]	0.448 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	20 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Cable Type	Number of Conductors	Voltage	Features	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Conductor Insulation	Jacket (Insulation) Material	Shield Material	Jacket Color	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge
ALPHA WIRE M13146 SL001	-20 C	80 C	100 %	Multi-Pair	12	300 V	Drain Wire	28	7	UL Style 2919	1000 ft	304.8 m	0.889 mm	0.035 in	Copper Tinned	Polyethylene (PE)	Poly-Vinyl Chloride (PVC)	Aluminum	Slate	Foil	11.38 mm	0.448 in	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.20

General part information

12 (6 Pair Twisted) Conductor Multi-Pair Cable Slate 20 AWG Foil 1000.0' (304.8m)
