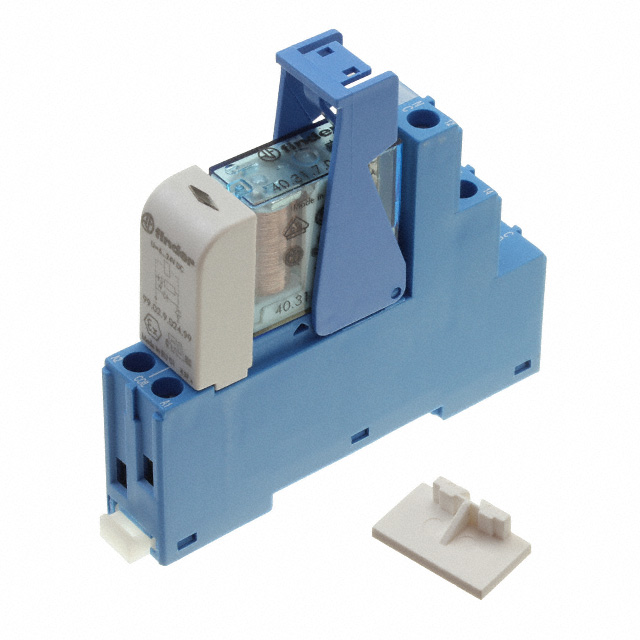

48.31.7.012.0050SPA
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE SPDT 10A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
48.31.7.012.0050SPA
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE SPDT 10A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 48.31.7.012.0050SPA |
|---|---|
| Approval Agency | CE, CSA, cURus EAC, RINA, NF, VDE |
| Coil Current | 41 mA |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A |
| Features | Lighted Indicator, Diode |
| Load - Max Switching | 4000 VA |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 8.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 12 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 12 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.95 | |
| 10 | $ 13.32 | |||
| 30 | $ 12.60 | |||
| 50 | $ 12.28 | |||
| 100 | $ 11.86 | |||
| 250 | $ 11.32 | |||
| 500 | $ 10.94 | |||
Description
General part information
48.31.7 Series
General Purpose Relay SPDT (1 Form C) 12VDC Coil DIN Rail
