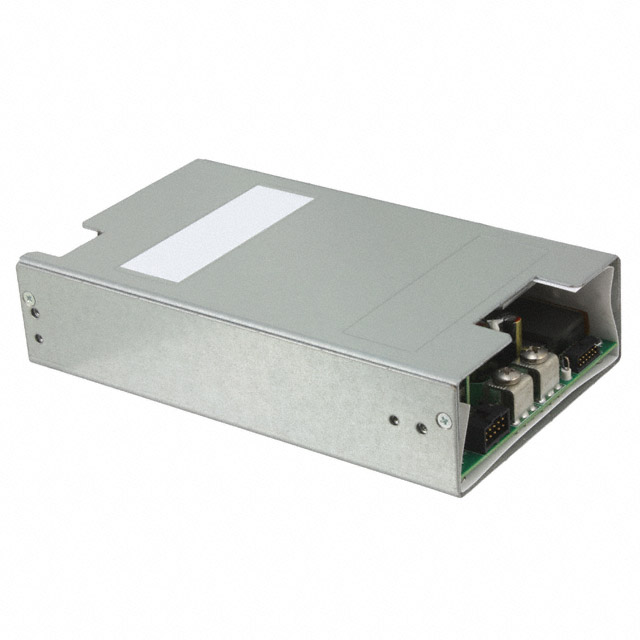

CEF400-112C

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 400W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 400W

Technical Specifications

Parameters and characteristics for this part

Specification	CEF400-112C

Applications	ITE (Commercial)
Approval Agency	CB, cURus
Current - Output 1	33.3 A
Efficiency	83 %
Features	Adjustable Output, Load Sharing, Universal Input, Remote On/Off, I2C Interface, Remote Sense
Mounting Type	Chassis Mount
Number of Outputs	1
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	7 in
Size / Dimension [y]	177.8 mm
Size / Dimension [z]	40.4 mm
Size / Dimension [z]	1.59 "
Type	Enclosed
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

Part	Efficiency	Features	Approval Agency	Number of Outputs	Current - Output 1	Mounting Type	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1	Voltage - Isolation	Applications
Murata Power Solutions Inc. CEF400-112C	83 %	Adjustable Output I2C Interface Load Sharing Remote On/Off Remote Sense Universal Input	CB cURus	1	33.3 A	Chassis Mount	Enclosed	4 in	101.6 mm	7 in	40.4 mm	1.59 "	177.8 mm	12 V	1.5 kV	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
