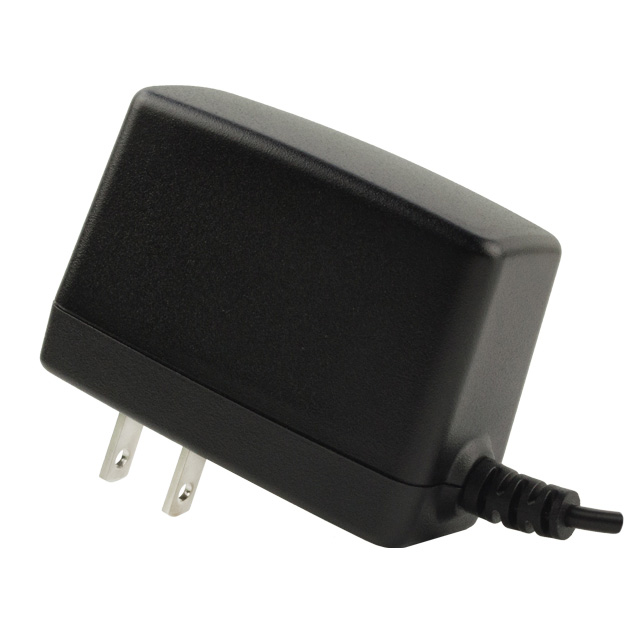

SWI15-24-N-P5

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 24V 15W

Deep-Dive with AI

Search across all available documentation for this part.

SWI15-24-N-P5

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 24V 15W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWI15-24-N-P5

Applications	ITE (Commercial)
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	630 mA
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	15 W
Region Utilized	North America
Size / Dimension [x]	71 mm
Size / Dimension [x]	2.8 in
Size / Dimension [y]	33 mm
Size / Dimension [y]	1.3 in
Size / Dimension [z]	48.4 mm
Size / Dimension [z]	1.91 in
Standard Number	61000-3-3, 61000-3-2, 55011 Class B, 60950-1, 61000-6-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V
Weight	99.79 g
Weight	0.22 lb

SWI15 Series

Part	Voltage - Output	Power (Watts)	Current - Output (Max) [Max]	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Weight	Weight	Approval Agency	Input Type	Polarization	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Cord Length	Cord Length	Form	No Load Power Consumption [Max]	Efficiency	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number
CUI Inc. SWI15-12-E-P5	12 V	12 W	1 A	ITE (Commercial)	90 VAC	264 VAC	CEE 7/16	99.79 g	0.22 lb	EN FCC SIQ TUV	Fixed Blade	Positive Center	2.8 in	2.62 "	66.6 mm	71 mm	48.4 mm	1.91 in	70.9 in	1.8 m	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Europe	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1
CUI Inc. SWI15-15-E-P5	15 VDC	15 W	1 A	ITE (Commercial)	90 VAC	264 VAC	CEE 7/16	99.79 g	0.22 lb	EN FCC SIQ TUV	Fixed Blade	Positive Center	2.8 in	2.62 "	66.6 mm	71 mm	48.4 mm	1.91 in	70.9 in	1.8 m	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Europe	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1
CUI Inc. SWI15-5-N-P5	5 V	10 W	2 A	ITE (Commercial)	90 VAC	264 VAC	NEMA 1-15P	99.79 g	0.22 lb		Fixed Blade	Positive Center	2.8 in	1.3 in	33 mm	71 mm	48.4 mm	1.91 in	70.9 in	1.8 m	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	North America	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1
CUI Inc. SWI15-12-N-P5	12 V	12 W	1 A	ITE (Commercial)	90 VAC	264 VAC	NEMA 1-15P	99.79 g	0.22 lb		Fixed Blade	Positive Center	2.8 in	1.3 in	33 mm	71 mm	48.4 mm	1.91 in	70.9 in	1.8 m	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	North America	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1
CUI Inc. SWI15-9-N-P5	9 V	13 W	1.4 A	ITE (Commercial)	90 VAC	264 VAC	NEMA 1-15P				Fixed Blade	Positive Center	2.8 in	1.3 in	33 mm	71 mm	48.4 mm	1.91 in	70.9 in	1.8 m	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	North America	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1
CUI Inc. SWI15-24-N-P5	24 V	15 W	630 mA	ITE (Commercial)	90 VAC	264 VAC	NEMA 1-15P	99.79 g	0.22 lb		Fixed Blade	Positive Center	2.8 in	1.3 in	33 mm	71 mm	48.4 mm	1.91 in	70.9 in	1.8 m	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	North America	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1
CUI Inc. SWI15-9-E-P5	9 V	13 W	1.4 A	ITE (Commercial)	90 VAC	264 VAC	CEE 7/16			EN FCC SIQ TUV	Fixed Blade	Positive Center	2.8 in	1.3 in	33 mm	71 mm	48.4 mm	1.91 in	70.9 in	1.8 m	Wall Mount (Class II)	75 mW	CoC Tier 2 Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Europe	-20 C	40 °C	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.24
		5	$ 15.80
		10	$ 14.92
		25	$ 14.04
		50	$ 13.17
		100	$ 12.29
		250	$ 11.85
		500	$ 11.67

Description

General part information

SWI15 Series

24V 15 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
