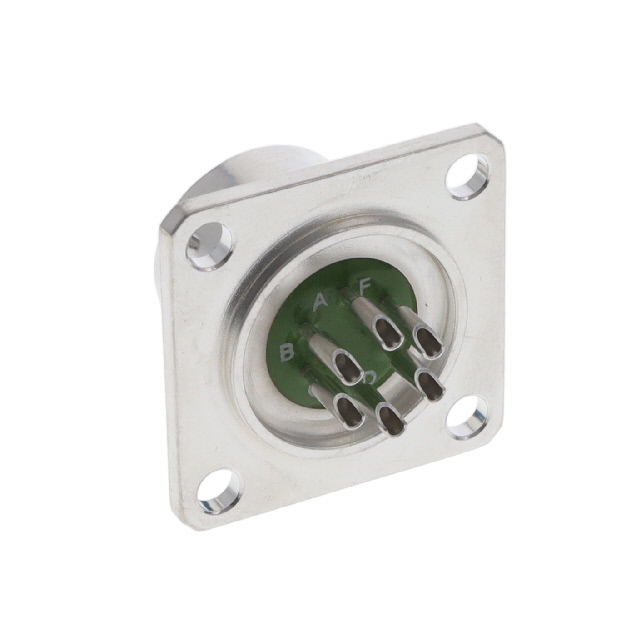

PT02H-10-6P

Active

Amphenol Aerospace Operations

CONN RCPT MALE 6P TIN SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 6P TIN SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	PT02H-10-6P

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	10-6
Shielding	Unshielded

Part	Shielding	Fastening Type	Primary Material	Qualification	Shell Material	Number of Positions	Mounting Feature	Orientation	Contact Material	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Color	Connector Type	Current Rating (Amps)	Backshell Material, Plating	Shell Size - Insert	Insert Material
Amphenol Aerospace Operations PT02H-10-6P	Unshielded	Bayonet Lock	Metal	MIL-DTL-26482 Series I	Aluminum	6	Flange	N	Copper Alloy	Olive Drab Chromate over Cadmium	-55 °C	125 °C	Aerospace Industrial Instrumentation Mass Transit Military	Olive Drab	Male Pins Receptacle	5 A	Aluminum Olive Drab Cadmium	10-6	Neoprene

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
