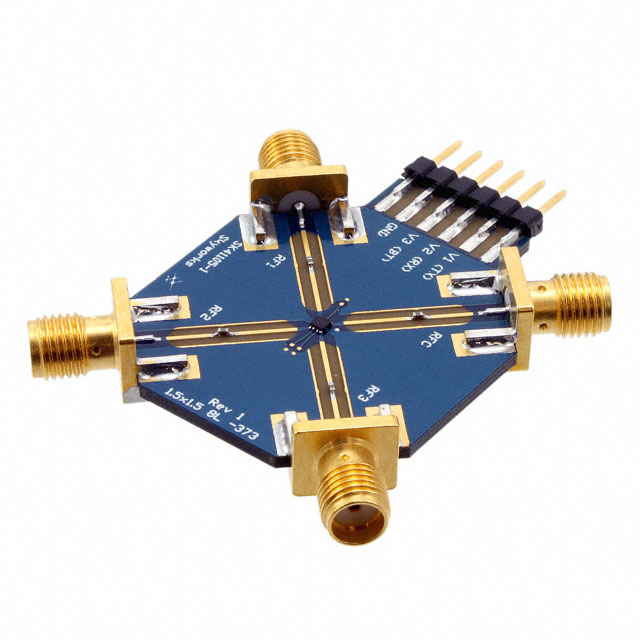

SKY13317-373LF-EVB
ActiveSkyworks Solutions Inc.
BOARD EVAL SP3T SW SKY13317-373
Deep-Dive with AI
Search across all available documentation for this part.
SKY13317-373LF-EVB
ActiveSkyworks Solutions Inc.
BOARD EVAL SP3T SW SKY13317-373
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13317-373LF-EVB |
|---|---|
| For Use With/Related Products | SKY13317-373LF |
| Frequency [Max] | 6 GHz |
| Frequency [Min] | 100 MHz |
| Supplied Contents | Board(s) |
| Type | Switch |
SKY13317 Series
| Part | Supplier Device Package | Isolation | Circuit | RF Type | Operating Temperature [Max] | Operating Temperature [Min] | Test Frequency | Impedance | Insertion Loss | IIP3 | P1dB | Topology | Frequency Range [Min] | Frequency Range [Max] | Mounting Type | Package / Case | For Use With/Related Products | Supplied Contents | Type | Frequency [Max] | Frequency [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Skyworks Solutions Inc. | 8-MLP (1.5x1.5) | 25 dB | SP3T | 802.11a/b/g/WiFi WLAN | 100 °C | -40 °C | 5.9 GHz | 50 Ohms | 0.8 dB | 50 dBm | 26 dBm | Reflective | 20 MHz | 6 GHz | Surface Mount | 8-XFDFN Exposed Pad | |||||
Skyworks Solutions Inc. | SKY13317-373LF | Board(s) | Switch | 6 GHz | 100 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 106.24 | |
Description
General part information
SKY13317 Series
- SKY13317-373LF Switch 100MHz ~ 6GHz Evaluation Board
Documents
Technical documentation and resources
No documents available
