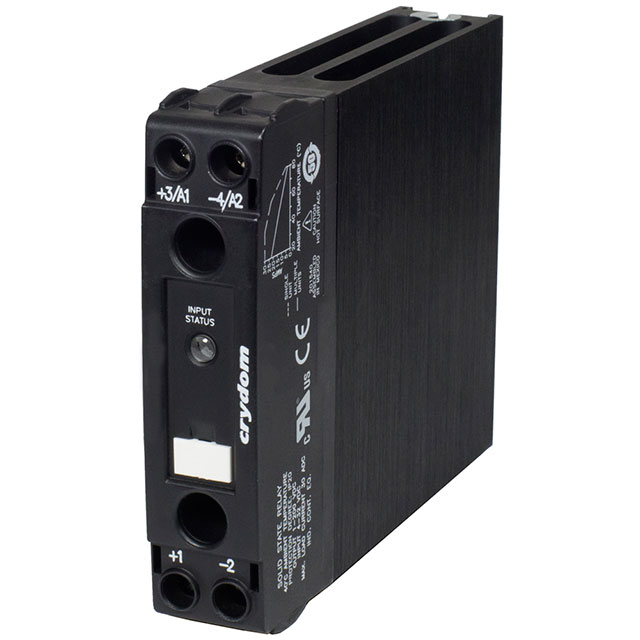

DR2260A20UR

Active

Sensata-Crydom

SSR RELAY SPST-NO 20A 48-600V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 20A 48-600V

Technical Specifications

Parameters and characteristics for this part

Specification	DR2260A20UR

Approval Agency	CE, IEC, cURus, EMC
Load Current	20 A
Mounting Type	DIN Rail
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	AC
Package / Case	SSR with Integrated Heat Sink
Termination Style	Screw Terminal
Voltage - Input [Max]	280 VAC/DC
Voltage - Input [Min]	90 VAC
Voltage - Load [Max]	600 V
Voltage - Load [Min]	48 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Output Type	Load Current	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type
Sensata-Crydom DR2260A35UR	-40 °C	80 C	CE cURus EMC IEC	Screw Terminal	48 V	600 V	AC	35 A	SSR with Integrated Heat Sink	280 VAC/DC	90 VAC	DIN Rail
Sensata-Crydom DR2260A20UR	-40 °C	80 C	CE cURus EMC IEC	Screw Terminal	48 V	600 V	AC	20 A	SSR with Integrated Heat Sink	280 VAC/DC	90 VAC	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 72.52

General part information

Solid State SPST-NO (1 Form A) SSR with Integrated Heat Sink
