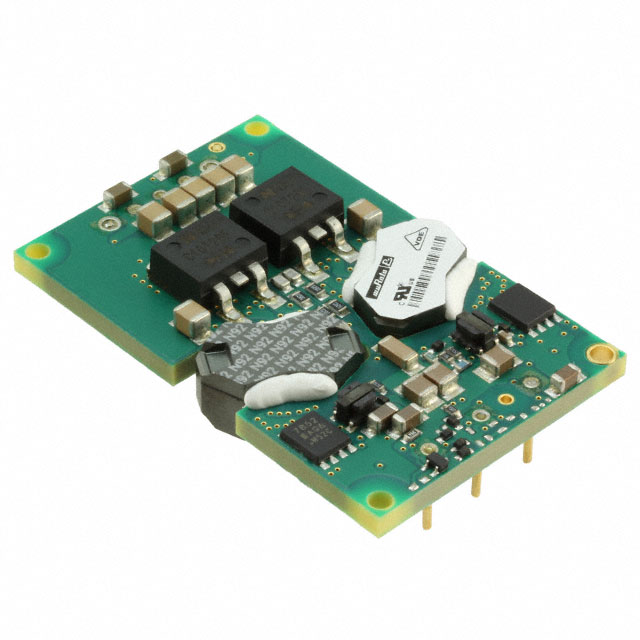

UVQ-48/2.5-D24P-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 48V 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UVQ-48/2.5-D24P-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 48V 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UVQ-48/2.5-D24P-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | 91 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1/4 Brick, 8-DIP Module |
| Power (Watts) | 120 W |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 10.7 mm |
| Size / Dimension [z] | 0.42 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 110.29 | |
Description
General part information
UVQ-48 Series
Isolated Module DC DC Converter 1 Output 48V 2.5A 18V - 36V Input
