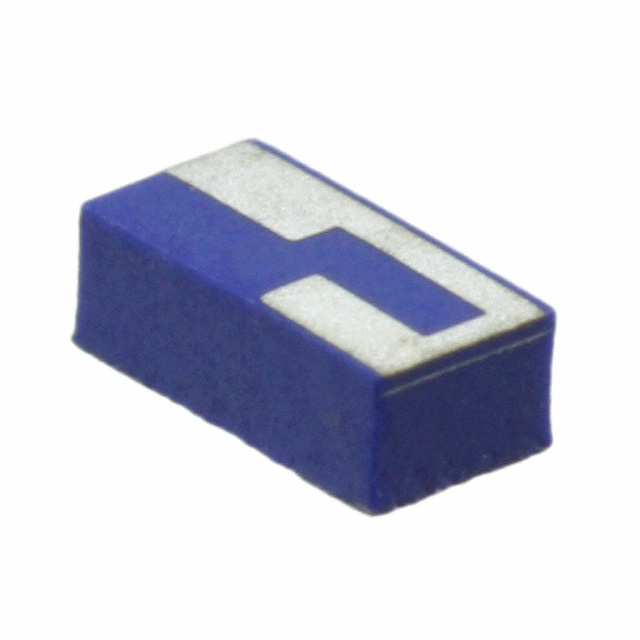

ANT3216LL15R1575A
ActivePulse Electronics
RF ANT 1.575GHZ CHIP SOLDER SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT3216LL15R1575A
ActivePulse Electronics
RF ANT 1.575GHZ CHIP SOLDER SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT3216LL15R1575A |
|---|---|
| Antenna Type | Chip |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1600 MHz |
| Frequency Range [Min] | 1550 MHz |
| Gain | 2.01 dBi |
| Height (Max) [Max] | 0.047 in |
| Height (Max) [Max] | 1.2 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 1 W |
| Return Loss | -10 dB |
| RF Family/Standard | Navigation |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.77 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.64 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.77 | ||
| 10 | $ 0.68 | |||
| 25 | $ 0.64 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 3000 | $ 0.20 | ||
| 6000 | $ 0.19 | |||
| 15000 | $ 0.17 | |||
| 30000 | $ 0.17 | |||
Description
General part information
ANT3216 Series
RF ANTENNA GPS Chip Solder Surface Mount
