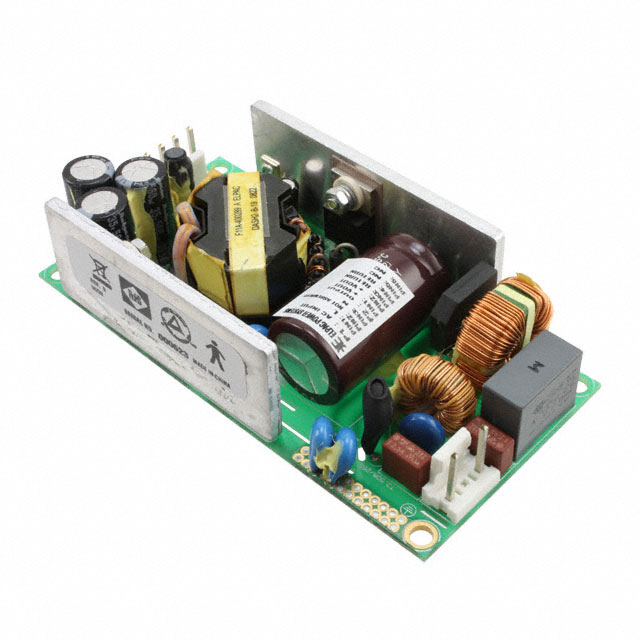

MTA040009A
ActiveInventus Power
AC/DC CONVERTER 9V 40W
Deep-Dive with AI
Search across all available documentation for this part.
MTA040009A
ActiveInventus Power
AC/DC CONVERTER 9V 40W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MTA040009A |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cTUVus |
| Current - Output 1 | 4.4 A |
| Efficiency | 85 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 1.08 " |
| Size / Dimension [z] | 27.5 mm |
| Type | Open Frame |
| Voltage - Output 1 | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.39 | |
| 24 | $ 28.60 | |||
| 120 | $ 25.92 | |||
Description
General part information
MTA040009 Series
Open Frame AC DC Converters 1 Output 9V 85 ~ 264 VAC Input
