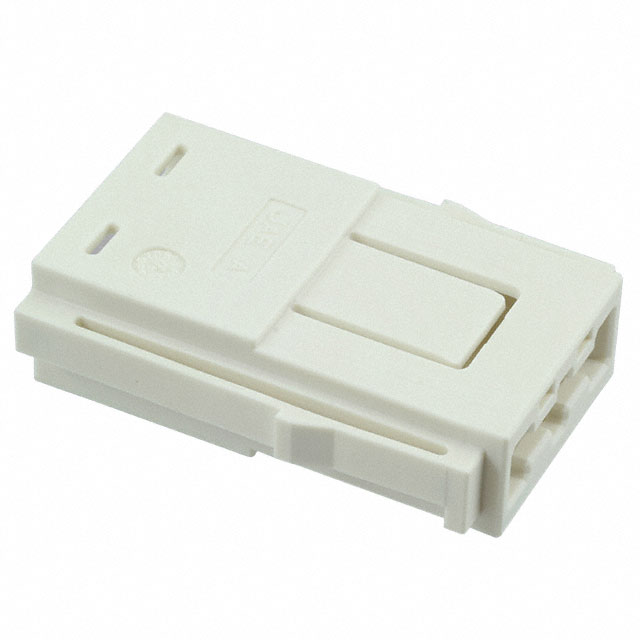

DW05S01CZZ2

Active

JAE Electronics

CONN SOCKET HSG 1POS IVORY

Search across all available documentation for this part.

Active

JAE Electronics

CONN SOCKET HSG 1POS IVORY

Technical Specifications

Parameters and characteristics for this part

Specification	DW05S01CZZ2

Color	Ivory
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

Part	Note	Mounting Type	Fastening Type	Insulation Material	Number of Positions	Contact Type	Contact Termination	Connector Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Wire Gauge	Pin or Socket
JAE Electronics DW05S01CZZ2	Contacts Not Included	Free Hanging (In-Line)	Friction Lock	Polybutylene Terephthalate (PBT) Glass Filled	1	Female Socket	Crimp	Socket	Ivory	85 °C	-40 °C
JAE Electronics DW05S01CAG1							Crimp					Gold	2 AWG	Socket
JAE Electronics DW05S01CZZ1	Contacts Not Included	Free Hanging (In-Line)	Friction Lock	Polybutylene Terephthalate (PBT) Glass Filled	1	Female Socket	Crimp	Socket	Black	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	107	$ 4.73

General part information

1 Rectangular Connectors - Housings Socket Ivory
