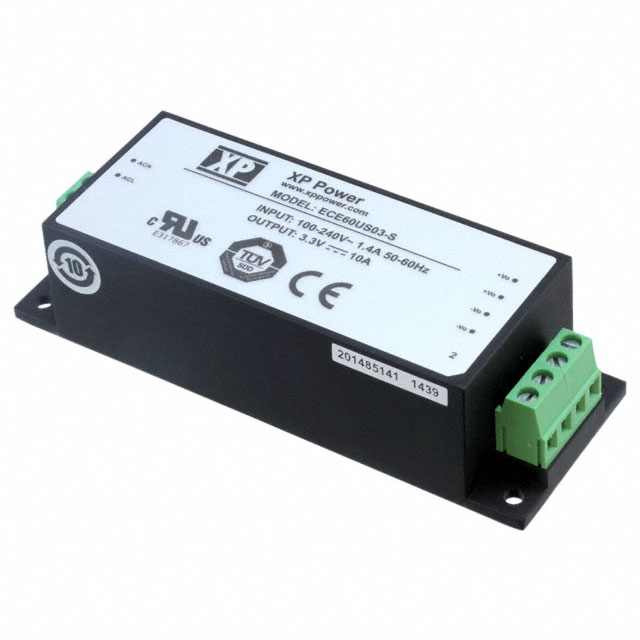

ECE60US03-S

Active

XP POWER

AC/DC CONVERTER 3.3V 33W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECE60 Series CB Report ECE60 Series TUV Certificate +2

ECE60US03-S

Active

XP POWER

AC/DC CONVERTER 3.3V 33W

Deep-Dive with AI

DocumentsECE60 Series CB Report ECE60 Series TUV Certificate +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECE60US03-S

Applications	ITE (Commercial)
Current - Output 1	10 A
Efficiency	79 %
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	33 W
Size / Dimension [x]	4.09 in
Size / Dimension [x]	104 mm
Size / Dimension [y]	40 mm
Size / Dimension [y]	1.57 "
Size / Dimension [z]	1.12 in
Size / Dimension [z]	28.5 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	3.3 V

ECE60 Series

Part	Voltage - Output 1	Voltage - Isolation	Efficiency	Current - Output 1	Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Standard Number	Features	Applications	Mounting Type	Input Type	Approval Agency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output (Max) [Max]	Power (Watts)
XP POWER ECE60US24-S	24 V	3000 V	89 %	2.5 A	Enclosed	1	40 mm	1.12 in	28.5 mm	4.09 in	104 mm	1.57 "	62368-1	DC Input Capable Universal Input	ITE (Commercial)	Chassis Mount
XP POWER ECE60US36-SD	36 V	3000 V	88 %			1	40 mm	1.12 in	28.5 mm	4.45 in	113 mm	1.57 "	62368-1	Universal Input	ITE (Commercial)		AC	CB TUV UL	85 VAC	264 VAC	1.67 A
XP POWER ECE60US12-S	12 V	3000 V	87 %	5 A	Enclosed	1	40 mm	1.12 in	28.5 mm	4.09 in	104 mm	1.57 "	62368-1	DC Input Capable Universal Input	ITE (Commercial)	Chassis Mount
XP POWER ECE60US24-SD	24 V	3000 V	89 %			1	40 mm	1.12 in	28.5 mm	4.45 in	113 mm	1.57 "	62368-1	Universal Input	ITE (Commercial)		AC	CB TUV UL	85 VAC	264 VAC	2.5 A
XP POWER ECE60US05-S	5 V	3000 V	83 %	10 A	Enclosed	1	40 mm	1.12 in	28.5 mm	4.09 in	104 mm	1.57 "	62368-1	DC Input Capable Universal Input	ITE (Commercial)	Chassis Mount						50 W
XP POWER ECE60US03-S	3.3 V	3000 V	79 %	10 A	Enclosed	1	40 mm	1.12 in	28.5 mm	4.09 in	104 mm	1.57 "	62368-1	DC Input Capable Universal Input	ITE (Commercial)	Chassis Mount						33 W
XP POWER ECE60US12-SD	12 V	3000 V	87 %			1	40 mm	1.12 in	28.5 mm	4.45 in	113 mm	1.57 "	62368-1	Universal Input	ITE (Commercial)		AC	CB TUV UL	85 VAC	264 VAC	5 A
XP POWER ECE60US09-S	9 V	3000 V	87 %	6.67 A	Enclosed	1	40 mm	1.12 in	28.5 mm	4.09 in	104 mm	1.57 "	62368-1	DC Input Capable Universal Input	ITE (Commercial)	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.19
		5	$ 96.21
		10	$ 93.24
		25	$ 89.27
		100	$ 83.32
