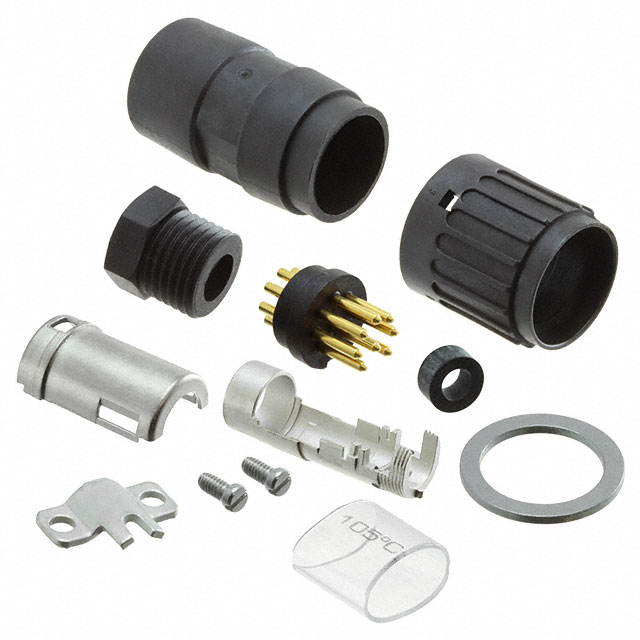

T3524548U
ActiveAmphenol Tuchel Industrial
CONN PLUG MALE 8P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T3524548U
ActiveAmphenol Tuchel Industrial
CONN PLUG MALE 8P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T3524548U |
|---|---|
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 7 A |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Strain Relief |
| Ingress Protection | IP40 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-8 |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.32 | |
| 10 | $ 14.87 | |||
| 25 | $ 13.45 | |||
| 50 | $ 12.50 | |||
| 100 | $ 11.63 | |||
| 250 | $ 10.61 | |||
| 500 | $ 9.92 | |||
| 1000 | $ 9.32 | |||
Description
General part information
T352 Series
8 Position Circular Connector Plug, Male Pins Solder Cup
