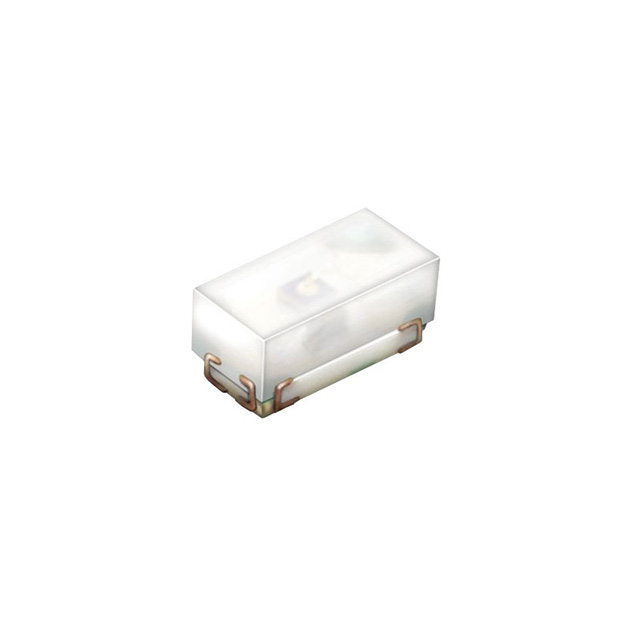

IR16-213C/L510/TR8
ActiveEverlight Electronics Co Ltd
EMITTER IR 940NM 50MA 1005
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IR16-213C/L510/TR8
ActiveEverlight Electronics Co Ltd
EMITTER IR 940NM 50MA 1005
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IR16-213C/L510/TR8 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 0402 (1005 Metric) |
| Radiant Intensity (Ie) Min @ If | 0.5 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.00 | |
| 10 | $ 0.64 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 1.00 | ||
| 10 | $ 0.64 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 3000 | $ 0.25 | ||
| 6000 | $ 0.23 | |||
| 9000 | $ 0.23 | |||
| 15000 | $ 0.22 | |||
| 21000 | $ 0.22 | |||
| 30000 | $ 0.21 | |||
Description
General part information
IR16-213 Series
Infrared (IR) Emitter 940nm 1.5V 50mA 0.50mW/sr @ 20mA 120° 0402 (1005 Metric)
