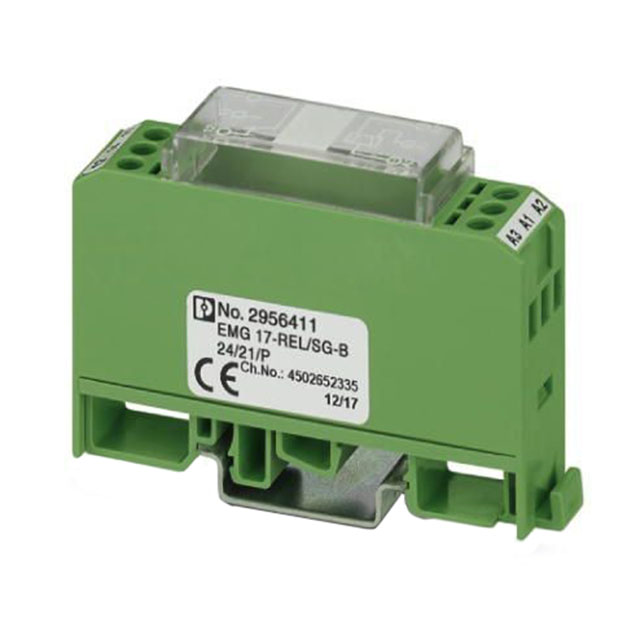

RELAY GEN PURPOSE SPDT 6A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2956411
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 6A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2956411 |
|---|---|
| Approval Agency | UL, EAC, cULus |
| Coil Resistance | 3 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Features | Socket Included, Diode |
| Load - Max Switching | 1500 VA, 144 W |
| Mounting Type | DIN Rail |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 94.56 | |
Description
General part information
29564 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
