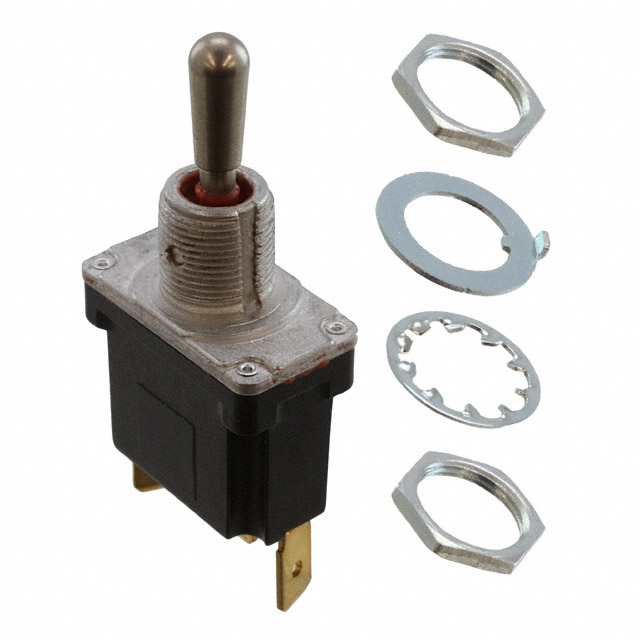

GTB-1B11

Active

CW Industries

SWITCH TOGGLE SPDT 12A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE SPDT 12A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GTB-1B11

Actuator Length [x]	17 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	12 A
Electrical Life	30000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Circuit	Actuator Length [x]	Actuator Type	Bushing Thread	Illumination	Ingress Protection	Actuator Material	Termination Style	Voltage Rating - AC	Electrical Life	Switch Function
CW Industries GTB-1B11	12 A	12 mm	SPDT	17 mm	Standard Round	15/32-32	Non-Illuminated	IP68 - Dust Tight Waterproof	Brass Nickel Plated	Quick Connect - 0.250" (6.3mm)	125 V	30000 Cycles	On-Off-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
