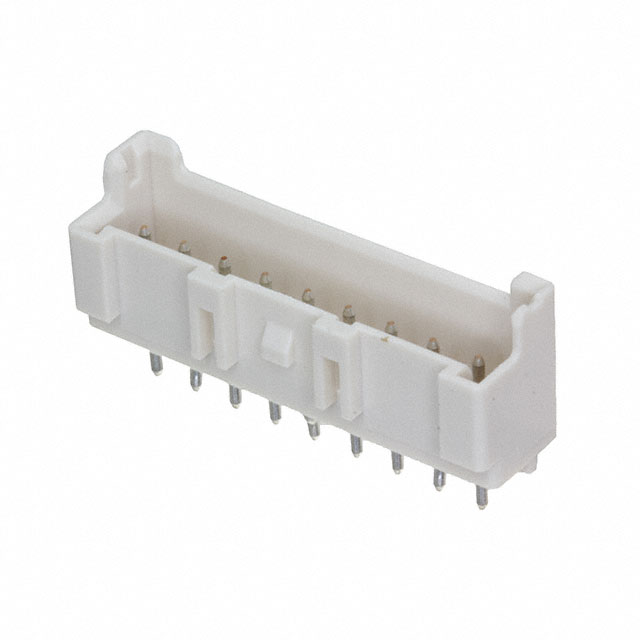

B09B-XASK-1-A
ActiveJST Sales America Inc.
CONN HEADER VERT 9POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
B09B-XASK-1-A
ActiveJST Sales America Inc.
CONN HEADER VERT 9POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B09B-XASK-1-A |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Height [z] | 0.346 in |
| Insulation Height [z] | 8.8 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mated Stacking Heights | 11.3 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder, Press-Fit |
| Voltage Rating | 250 VDC |
B09B-XAS Series
| Part | Voltage Rating | Mounting Type | Style | Features | Number of Positions | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Insulation Material | Number of Positions Loaded | Fastening Type | Contact Type | Termination | Shrouding | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Connector Type | Contact Finish - Post | Contact Material | Mated Stacking Heights | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | 250 VDC | Through Hole | Board to Cable/Wire | Board Guide | 9 | 3 A | 0.346 in | 8.8 mm | Polyamide (PA66) Nylon 6/6 Glass Filled | All | Locking Ramp | Male Pin | Press-Fit Solder | Shrouded - 4 Wall | 1 | -25 °C | 85 °C | UL94 V-0 | 2.5 mm | 0.098 in | Circular | 0.134 in | 3.4 mm | Natural | Header | Tin | Copper Alloy | |||
JST Sales America Inc. | 250 VDC | Through Hole | Board to Cable/Wire | 9 | 3 A | 0.346 in | 8.8 mm | Polyamide (PA66) Nylon 6/6 Glass Filled | All | Locking Ramp | Male Pin | Press-Fit Solder | Shrouded - 4 Wall | 1 | -25 °C | 85 °C | UL94 V-0 | 2.5 mm | 0.098 in | Circular | 0.134 in | 3.4 mm | Natural | Header | Tin | Copper Alloy | ||||
JST Sales America Inc. | 250 VDC | Through Hole | Board to Cable/Wire | Board Guide | 9 | 3 A | 0.346 in | 8.8 mm | Polyamide (PA66) Nylon 6/6 Glass Filled | All | Locking Ramp | Male Pin | Press-Fit Solder | Shrouded - 4 Wall | 1 | -25 °C | 85 °C | UL94 V-0 | 2.5 mm | 0.098 in | Circular | Natural | Header | Tin | Copper Alloy | 11.3 mm | 0.118 in | 3 mm | ||
JST Sales America Inc. | 250 VDC | Through Hole | Board to Cable/Wire | 9 | 3 A | 0.346 in | 8.8 mm | Polyamide (PA66) Nylon 6/6 Glass Filled | All | Locking Ramp | Male Pin | Press-Fit Solder | Shrouded - 4 Wall | 1 | -25 °C | 85 °C | UL94 V-0 | 2.5 mm | 0.098 in | Circular | 0.134 in | 3.4 mm | Natural | Header | Tin | Copper Alloy | 11.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.66 | |
| 10 | $ 0.50 | |||
| 100 | $ 0.38 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.30 | |||
| 5000 | $ 0.25 | |||
| 10000 | $ 0.23 | |||
Description
General part information
B09B-XAS Series
Connector Header Through Hole 9 position 0.098" (2.50mm)
