852-10-016-10-003000

Active

Mill-Max Manufacturing Corp.

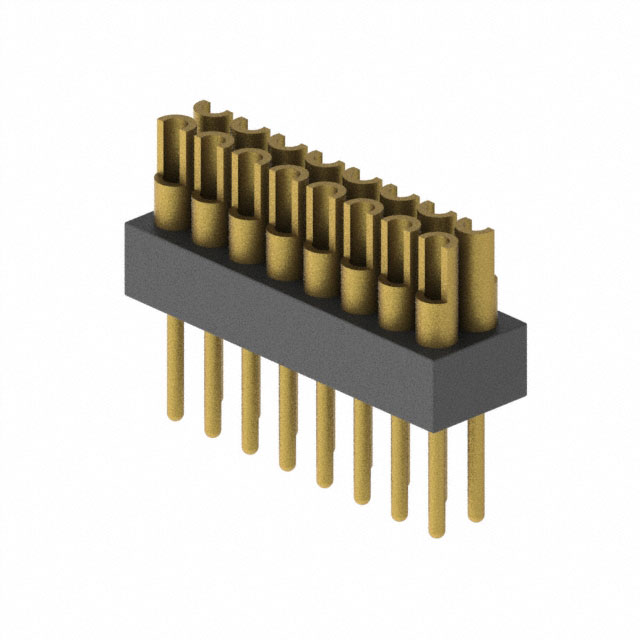

CONN HEADER VERT 16POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

852-10-016-10-003000

Active

Mill-Max Manufacturing Corp.

CONN HEADER VERT 16POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	852-10-016-10-003000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.1 in
Contact Length - Mating	2.54 mm
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	0.303 in
Overall Contact Length	7.7 mm
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

852-10 Series

Part	Contact Material	Contact Length - Mating	Contact Length - Mating	Number of Rows	Connector Type	Contact Finish - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Shrouding	Fastening Type	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Positions Loaded	Mounting Type	Number of Positions	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Insulation Height	Insulation Height
Mill-Max Manufacturing Corp. 852-10-078-10-001000	Brass Alloy	3 mm	0.118 in	2	Header	Gold	8.1 mm	0.319 in	Unshrouded	Push-Pull	Male Pin	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Circular	10 çin	0.25 çm	0.05 in	1.27 mm	Polyamide (PA46) Nylon 4/6	Black	0.114 in	2.9 mm	Gold	All	Through Hole	78
Mill-Max Manufacturing Corp. 852-10-052-30-001000	Brass Alloy	3 mm	0.118 in	2	Header	Gold			Unshrouded	Push-Pull	Male Pin	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Circular	10 çin	0.25 çm	0.05 in	1.27 mm	Polyamide (PA46) Nylon 4/6	Black			Gold	All	Surface Mount	52
Mill-Max Manufacturing Corp. 852-10-016-10-003000	Brass Alloy	2.54 mm	0.1 in	2	Header	Gold			Unshrouded	Push-Pull	Male Pin	0.05 in	1.27 mm			Solder	Circular	10 çin	0.25 çm	0.05 in	1.27 mm	Polyamide (PA46) Nylon 4/6	Black	0.122 "	3.1 mm	Gold	All	Through Hole		16	0.303 in	7.7 mm
Mill-Max Manufacturing Corp. 852-10-040-20-001000	Brass Alloy	3 mm	0.118 in	2	Header	Gold			Unshrouded	Push-Pull	Male Pin	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Circular	10 çin	0.25 çm	0.05 in	1.27 mm	Polyamide (PA46) Nylon 4/6	Black		3.2 mm	Gold	All	Through Hole Right Angle	40				0.126 in	3.05 mm	0.12 in
Mill-Max Manufacturing Corp. 852-10-084-30-001000	Brass Alloy	3 mm	0.118 in	2	Header	Gold			Unshrouded	Push-Pull	Male Pin	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Circular	10 çin	0.25 çm	0.05 in	1.27 mm	Polyamide (PA46) Nylon 4/6	Black			Gold	All	Surface Mount	84
Mill-Max Manufacturing Corp. 852-10-098-20-001000	Brass Alloy	3 mm	0.118 in	2	Header	Gold			Unshrouded	Push-Pull	Male Pin	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Circular	10 çin	0.25 çm	0.05 in	1.27 mm	Polyamide (PA46) Nylon 4/6	Black		3.2 mm	Gold	All	Through Hole Right Angle	98				0.126 in	3.05 mm	0.12 in
Mill-Max Manufacturing Corp. 852-10-056-10-001000	Brass Alloy	3 mm	0.118 in	2	Header	Gold	8.1 mm	0.319 in	Unshrouded	Push-Pull	Male Pin	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Circular	10 çin	0.25 çm	0.05 in	1.27 mm	Polyamide (PA46) Nylon 4/6	Black	0.114 in	2.9 mm	Gold	All	Through Hole	56
Mill-Max Manufacturing Corp. 852-10-098-30-001000	Brass Alloy	3 mm	0.118 in	2	Header	Gold			Unshrouded	Push-Pull	Male Pin	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Circular	10 çin	0.25 çm	0.05 in	1.27 mm	Polyamide (PA46) Nylon 4/6	Black			Gold	All	Surface Mount	98
Mill-Max Manufacturing Corp. 852-10-080-10-001000	Brass Alloy	3 mm	0.118 in	2	Header	Gold	8.1 mm	0.319 in	Unshrouded	Push-Pull	Male Pin	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Circular	10 çin	0.25 çm	0.05 in	1.27 mm	Polyamide (PA46) Nylon 4/6	Black	0.114 in	2.9 mm	Gold	All	Through Hole	80
Mill-Max Manufacturing Corp. 852-10-094-10-001000	Brass Alloy	3 mm	0.118 in	2	Header	Gold	8.1 mm	0.319 in	Unshrouded	Push-Pull	Male Pin	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Circular	10 çin	0.25 çm	0.05 in	1.27 mm	Polyamide (PA46) Nylon 4/6	Black	0.114 in	2.9 mm	Gold	All	Through Hole	94

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.63
		49	$ 2.21
		147	$ 2.11
		539	$ 1.85

Description

General part information

852-10 Series

Connector Header Through Hole 16 position 0.050" (1.27mm)

Documents

Technical documentation and resources

No documents available
