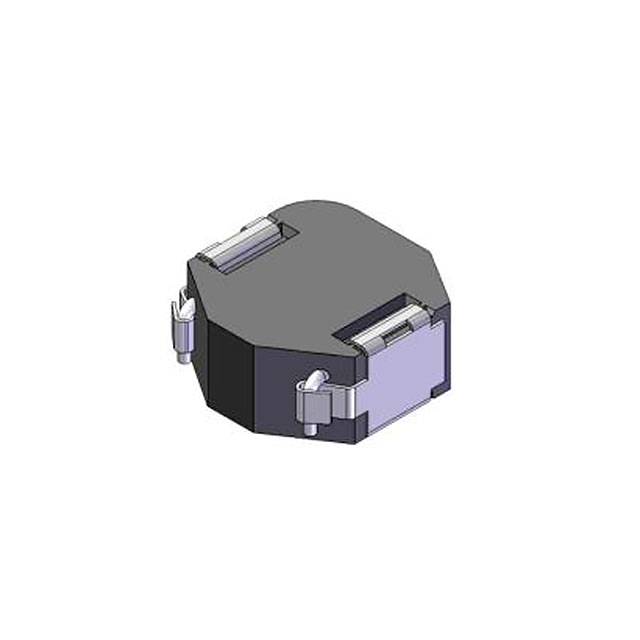

DFEH12060D-150M=P3

Obsolete

Murata Power Solutions Inc.

FIXED IND 15UH 6.6A 28 MOHM SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND 15UH 6.6A 28 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Inductance	Shielding	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Material - Core	Current - Saturation (Isat)	Mounting Type	Ratings	DC Resistance (DCR)
Murata Power Solutions Inc. DFEH12060D-2R2M=P3	Nonstandard	2.2 µH	Shielded	4.4 mOhm	0.496 in	12.6 mm	0.512 in	13 mm	-40 °C	155 °C	20 %	100 MHz	0.236 in	6 mm	16 A	Iron Powder	21 A	Surface Mount	AEC-Q200
Murata Power Solutions Inc. DFEH12060D-100M=P3	Nonstandard	10 µH	Shielded		0.496 in	12.6 mm	0.512 in	13 mm	-40 °C	155 °C	20 %	100 MHz	0.236 in	6 mm	7.9 A	Iron Powder	8.8 A	Surface Mount	AEC-Q200	20 mOhm
Murata Power Solutions Inc. DFEH12060D-330M=P3
Murata Power Solutions Inc. DFEH12060D-150M=P3	Nonstandard	15 µH	Shielded	28 mOhm	0.496 in	12.6 mm	0.512 in	13 mm	-40 °C	155 °C	20 %	100 MHz	0.236 in	6 mm	6.6 A	Iron Powder	7.4 A	Surface Mount	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 µH Shielded Inductor 6.6 A 28mOhm Max Nonstandard
