X9C503PI

Obsolete

Renesas Electronics Corporation

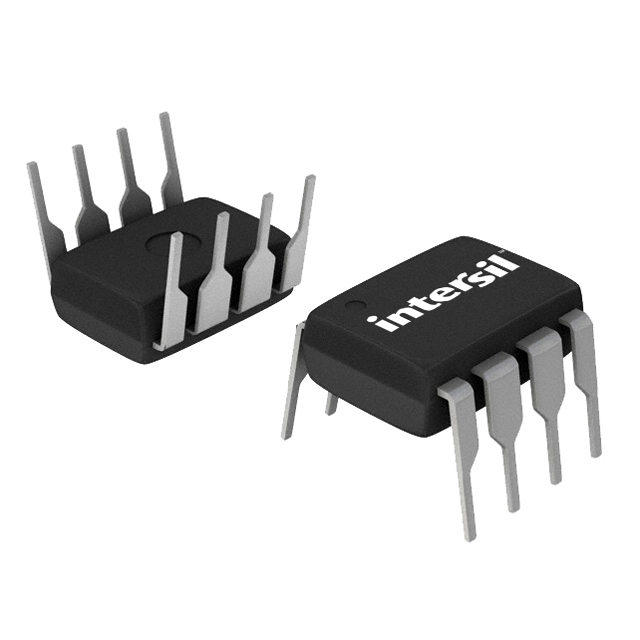

IC DGTL POT 50KOHM 100TAP 8DIP

Search across all available documentation for this part.

Obsolete

Renesas Electronics Corporation

IC DGTL POT 50KOHM 100TAP 8DIP

Technical Specifications

Parameters and characteristics for this part

Specification	X9C503PI

Configuration	Potentiometer
Interface	Up/Down
Memory Type	Non-Volatile
Mounting Type	Through Hole
Number of Circuits	1
Number of Taps	100
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0.3 in
Package / Case	8-DIP
Package / Case	7.62 mm
Resistance - Wiper (Ohms) (Typ)	40 Ohms
Resistance (Ohms)	50 kOhms
Supplier Device Package	8-PDIP
Taper	Linear
Temperature Coefficient (Typ)	300 ppm/°C
Tolerance	20 %

Part	Number of Taps	Memory Type	Resistance - Wiper (Ohms) (Typ)	Interface	Tolerance	Taper	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Temperature Coefficient (Typ)	Resistance (Ohms)	Mounting Type	Supplier Device Package	Configuration	Package / Case	Package / Case
Renesas Electronics Corporation X9C503SI	100	Non-Volatile	40 Ohms	Up/Down	20 %	Linear	8-SOIC	3.9 mm	0.154 in	85 °C	-40 °C	1	300 ppm/°C	50 kOhms	Surface Mount	8-SOIC	Potentiometer
Renesas Electronics Corporation X9C503SZ	100	Non-Volatile	40 Ohms	Up/Down	20 %	Linear	8-SOIC	3.9 mm	0.154 in	70 °C	0 °C	1	300 ppm/°C	50 kOhms	Surface Mount	8-SOIC	Potentiometer
Renesas Electronics Corporation X9C503SZT1	100	Non-Volatile	40 Ohms	Up/Down	20 %	Linear	8-SOIC	3.9 mm	0.154 in	70 °C	0 °C	1	300 ppm/°C	50 kOhms	Surface Mount	8-SOIC	Potentiometer
Renesas Electronics Corporation X9C503SIT1	100	Non-Volatile	40 Ohms	Up/Down	20 %	Linear	8-SOIC	3.9 mm	0.154 in	85 °C	-40 °C	1	300 ppm/°C	50 kOhms	Surface Mount	8-SOIC	Potentiometer
Renesas Electronics Corporation X9C503SIZT1	100	Non-Volatile	40 Ohms	Up/Down	20 %	Linear	8-SOIC	3.9 mm	0.154 in	85 °C	-40 °C	1	300 ppm/°C	50 kOhms	Surface Mount	8-SOIC	Potentiometer
Renesas Electronics Corporation X9C503PI	100	Non-Volatile	40 Ohms	Up/Down	20 %	Linear	8-DIP			85 °C	-40 °C	1	300 ppm/°C	50 kOhms	Through Hole	8-PDIP	Potentiometer	0.3 in	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Digital Potentiometer 50k Ohm 1 Circuit 100 Taps Up/Down (U/D, INC, CS) Interface 8-PDIP
