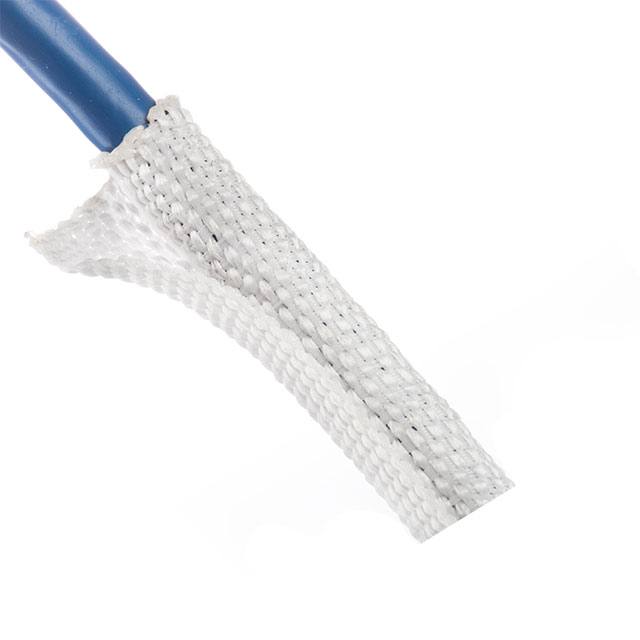

F6W0.19WH1200

Active

Techflex

SELF WRAP 0.187" X 1200' WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

F6W0.19WH1200

Active

Techflex

SELF WRAP 0.187" X 1200' WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	F6W0.19WH1200

Abrasion Protection	Abrasion Resistant
Color	White
Diameter - Outside, Non-Expanded [diameter]	4.78 mm
Diameter - Outside, Non-Expanded [diameter]	0.188 in
Features	Clean Cut
Length	365.76 m
Length	1200 '
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness	0.69 mm
Wall Thickness	0.027 in

F6W0 Series

Part	Type Attributes	Abrasion Protection	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Features	Length	Length	Material	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Wall Thickness	Wall Thickness	Color	Type	Length [x]	Length [x]
Techflex F6W0.31BK650	Split Flexible Tube	Abrasion Resistant	UL94 V-0	125 °C	-70 °C	Clean Cut	198.12 m	650 ft	Polyethylene Terephthalate (PET) Halogen Free	7.95 mm	0.313 in	0.69 mm	0.027 in	Black	Self Wrap
Techflex F6W0.19BK600	Split Flexible Tube	Abrasion Resistant	UL94 V-0	125 °C	-70 °C	Clean Cut	182.88 m	600 ft	Polyethylene Terephthalate (PET) Halogen Free	4.78 mm	0.188 in	0.69 mm	0.027 in	Black	Self Wrap
Techflex F6W0.50BK150	Split Flexible Tube	Abrasion Resistant	UL94 V-0	125 °C	-70 °C	Clean Cut	45.72 m	150 ft	Polyethylene Terephthalate (PET) Halogen Free	12.7 mm	0.5 in	0.69 mm	0.027 in	Black	Self Wrap
Techflex F6W0.19WH200	Split Flexible Tube	Abrasion Resistant	UL94 V-0	125 °C	-70 °C	Clean Cut	60.96 m	200 '	Polyethylene Terephthalate (PET) Halogen Free	4.78 mm	0.188 in	0.69 mm	0.027 in	White	Self Wrap
Techflex F6W0.63WH75	Split Flexible Tube	Abrasion Resistant	UL94 V-0	125 °C	-70 °C	Clean Cut			Polyethylene Terephthalate (PET) Halogen Free	15.88 mm	0.625 in	0.69 mm	0.027 in	White	Self Wrap	22.86 m	75 ft
Techflex F6W0.75BK100	Split Flexible Tube	Abrasion Resistant	UL94 V-0	125 °C	-70 °C	Clean Cut	30.48 m	100 ft	Polyethylene Terephthalate (PET) Halogen Free	19.05 mm	0.75 in	0.69 mm	0.027 in	Black	Self Wrap
Techflex F6W0.19CB1200	Split Flexible Tube	Abrasion Resistant	UL94 V-0	125 °C	-70 °C	Clean Cut	365.76 m	1200 '	Polyethylene Terephthalate (PET) Halogen Free	4.78 mm	0.188 in	0.69 mm	0.027 in	Gray	Self Wrap
Techflex F6W0.75BK150	Split Flexible Tube	Abrasion Resistant	UL94 V-0	125 °C	-70 °C	Clean Cut	45.72 m	150 ft	Polyethylene Terephthalate (PET) Halogen Free	19.05 mm	0.75 in	0.69 mm	0.027 in	Black	Self Wrap
Techflex F6W0.19WH1200	Split Flexible Tube	Abrasion Resistant	UL94 V-0	125 °C	-70 °C	Clean Cut	365.76 m	1200 '	Polyethylene Terephthalate (PET) Halogen Free	4.78 mm	0.188 in	0.69 mm	0.027 in	White	Self Wrap
Techflex F6W0.63BK250	Split Flexible Tube	Abrasion Resistant	UL94 V-0	125 °C	-70 °C	Clean Cut			Polyethylene Terephthalate (PET) Halogen Free	15.88 mm	0.625 in	0.69 mm	0.027 in	Black	Self Wrap	76.2 m	250 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 694.13

Description

General part information

F6W0 Series

Self Wrap 0.188" (4.78mm) X 1200' (365.76m) White

Documents

Technical documentation and resources
