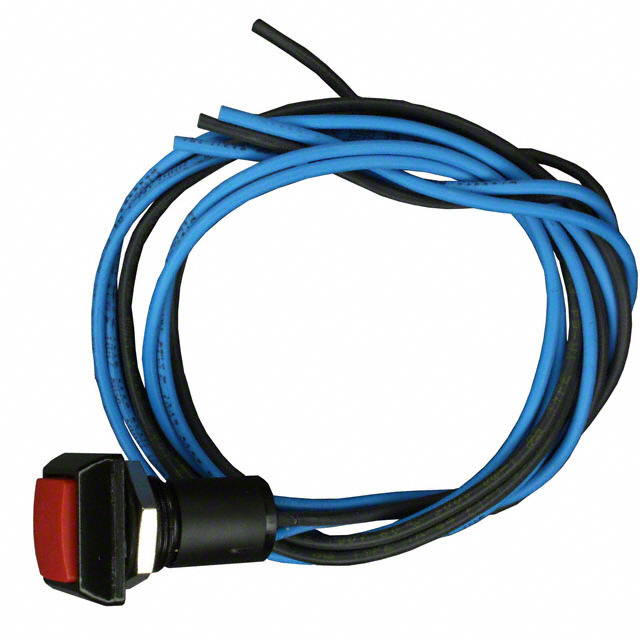

IPC5FAD6

Active

APEM

SWITCH PUSH SPDT 0.5A 48V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSH SPDT 0.5A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	IPC5FAD6

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	200 mA, 500 mA
Electrical Life	500000 Cycles
Features	Tactile Feedback
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Standard
Voltage Rating - AC	48 V
Voltage Rating - DC	48 V

Part	Voltage Rating - DC	Ingress Protection	Electrical Life	Switch Function	Current Rating (Amps)	Circuit	Panel Cutout Dimensions [diameter]	Termination Style	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Features	Type	Voltage Rating - AC	Mounting Type	Actuator Type
APEM IPC5FAD2	48 V	IP67 - Dust Tight Waterproof	500000 Cycles	On-Mom	200 mA 500 mA	SPDT	13.6 mm	Wire Leads	Black	125 °C	-40 °C	No Marking	Tactile Feedback	Standard	48 V	Panel Mount Front	Button Square
APEM IPC5FAD6	48 V	IP67 - Dust Tight Waterproof	500000 Cycles	On-Mom	200 mA 500 mA	SPDT	13.6 mm	Wire Leads	Red	125 °C	-40 °C	No Marking	Tactile Feedback	Standard	48 V	Panel Mount Front	Button Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 38.82

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
