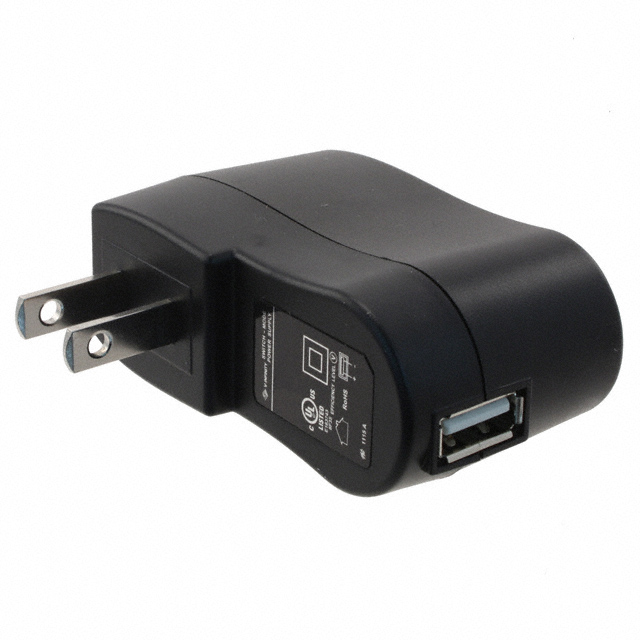

EPS050100U-I38-SZ
ObsoleteCUI Inc.
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPS050100U-I38-SZ
ObsoleteCUI Inc.
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPS050100U-I38-SZ |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | Level IV |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 5 W |
| Region Utilized | North America |
| Size / Dimension [x] | 2.87 in |
| Size / Dimension [x] | 73 mm |
| Size / Dimension [y] | 29 mm |
| Size / Dimension [y] | 1.14 " |
| Size / Dimension [z] | 44.5 mm |
| Size / Dimension [z] | 1.75 " |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
| Weight | 63.05 g |
| Weight | 0.139 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EPS050100 Series
5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
