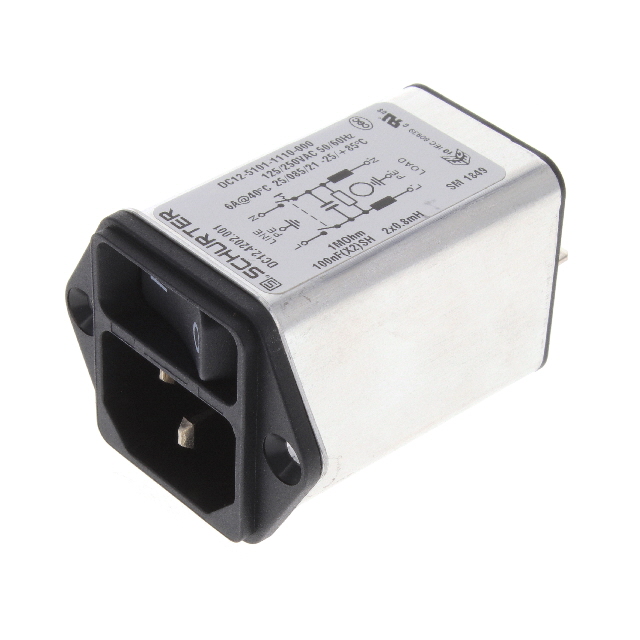

DC12.4202.001

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet PEM Filter Overview

DC12.4202.001

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet PEM Filter Overview

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC12.4202.001

Accomodates a Fuse	False
Approval Agency	CQC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	6 A
Features	V-Lock Notch, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29.1 mm
Panel Cutout Dimensions [y]	33.1 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

DC12.4202 Series

Part	Material Flammability Rating	Filter Type	Switch Features	Current Rating - Appliance Inlet	Features	Termination	Termination	Termination	Approval Agency	Ingress Protection	Connector Type	Mounting Type	Current Rating - Filter	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - Appliance Inlet	Number of Positions	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]
SCHURTER Inc. DC12.4202.003	UL94 V-0	Filtered (EMI RFI) - Commercial Medical	Switch On-Off	10 A	Shielded V-Lock Notch	0.25 in	6.3 mm	Quick Connect	CQC cULus ENEC	IP40	Receptacle Male Blades - Module	Flange Panel Mount	6 A	IEC 320-C14	33.1 mm	29.1 mm	250 VAC
SCHURTER Inc. DC12.4202.131	UL94 V-0	Filtered (EMI RFI) - Commercial Medical	Switch On-Off	10 A	Shielded V-Lock Notch	0.25 in	6.3 mm	Quick Connect	CQC cULus ENEC	IP40	Receptacle Male Blades - Module	Panel Mount Snap-In	6 A	IEC 320-C18	33.1 mm	29.4 mm	250 VAC	2	3 mm	0.118 in	0.039 in	1 mm
SCHURTER Inc. DC12.4202.201	UL94 V-0	Filtered (EMI RFI) - Commercial Medical	Switch On-Off	10 A	Shielded V-Lock Notch	0.25 in	6.3 mm	Quick Connect	CQC cULus ENEC	IP40	Receptacle Male Blades - Module	Flange Panel Mount	6 A	IEC 320-C14	34.4 mm	30.4 mm	250 VAC
SCHURTER Inc. DC12.4202.121	UL94 V-0	Filtered (EMI RFI) - Commercial Medical	Switch On-Off	10 A	Shielded V-Lock Notch	0.25 in	6.3 mm	Quick Connect	CQC cULus ENEC	IP40	Receptacle Male Blades - Module	Panel Mount Snap-In	6 A	IEC 320-C18	33.1 mm	29.4 mm	250 VAC	2	3 mm	0.118 in	0.039 in	1 mm
SCHURTER Inc. DC12.4202.031	UL94 V-0	Filtered (EMI RFI) - Commercial Medical	Switch On-Off	10 A	Shielded V-Lock Notch	0.25 in	6.3 mm	Quick Connect	CQC cULus ENEC	IP40	Receptacle Male Blades - Module	Flange Panel Mount	6 A	IEC 320-C18	33.1 mm	29.1 mm	250 VAC	2
SCHURTER Inc. DC12.4202.001	UL94 V-0	Filtered (EMI RFI) - Commercial Medical	Switch On-Off	10 A	Shielded V-Lock Notch	0.25 in	6.3 mm	Quick Connect	CQC cULus ENEC	IP40	Receptacle Male Blades - Module	Flange Panel Mount	6 A	IEC 320-C14	33.1 mm	29.1 mm	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.90
		50	$ 22.30
		100	$ 19.99

Description

General part information

DC12.4202 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
