19401 010250

Active

Belden Inc.

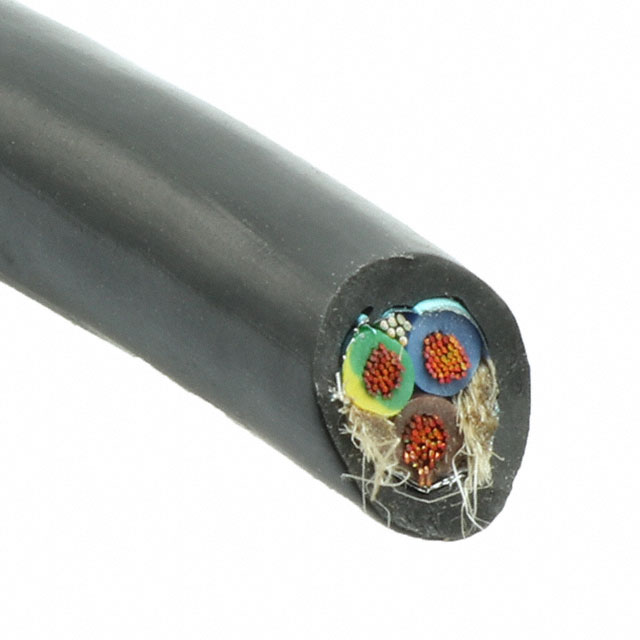

CABLE 3COND 18AWG BLACK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG BLACK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	19401 010250

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	34 AWG, 42
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	3
Ratings	UL Style SVT
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Cord and Cordset
Voltage	300 V
Wire Gauge	18 AWG

Part	Length	Length	Shield Type	Usage	Conductor Insulation	Cable Type	Conductor Material	Wire Gauge	Number of Conductors	Features	Shield Material	Ratings	Jacket Color	Shield Coverage	Jacket (Insulation) Material	Conductor Strand	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 19401 010250	3000 "	76.2 m	Foil	Cord and Cordset	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Bare	18 AWG	3	Drain Wire	Aluminum	UL Style SVT	Black	100 %	Poly-Vinyl Chloride (PVC)	34 AWG 42	300 V	6.86 mm	0.27 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG Foil 250.0' (76.2m)
