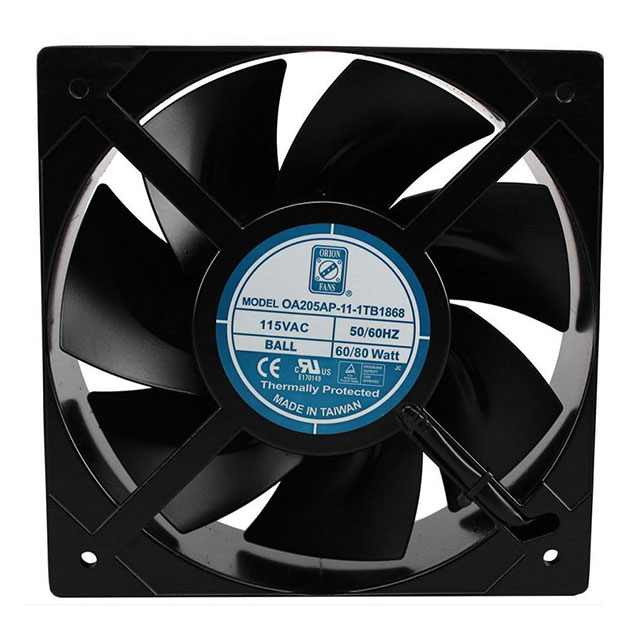

OA205AP-11-1TB1868

Active

Orion Fans

FAN 115AC 205X205X72MM IP68 TERM

Deep-Dive with AI

Search across all available documentation for this part.

OA205AP-11-1TB1868

Active

Orion Fans

FAN 115AC 205X205X72MM IP68 TERM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA205AP-11-1TB1868

Air Flow	16.52 mł/min
Air Flow	590 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	50000 Hrs
Material - Blade	Steel
Material - Frame	Aluminum
Noise	67 dB
Power (Watts)	80 W
RPM	3000 RPM
Size / Dimension	Square
Size / Dimension [x]	205 mm
Size / Dimension [z]	205 mm
Static Pressure	214.2 Pa
Static Pressure	0.86 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	5.2 lbs
Weight	2.4 kg
Width [y]	72 mm

OA205AP Series

Part	Material - Frame	Weight	Weight	Width [y]	Ingress Protection	Material - Blade	Bearing Type	Fan Type	Features	Power (Watts)	Static Pressure	Static Pressure	Lifetime @ Temp.	RPM	Air Flow	Air Flow	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Approval Agency	Noise	Termination
Orion Fans OA205AP-11-1WB1869K	Aluminum	5.2 lbs	2.4 kg	72 mm	IP69K	Steel	Ball	Tubeaxial	Capacitor Thermal Overload Protector (TOP)	80 W	214.2 Pa	0.86 in H2O	50000 Hrs	3000 RPM	16.52 mł/min	590 CFM	Square	205 mm	205 mm	115 VAC	CE cURus TUV UR	67 dB	2 Wire Leads
Orion Fans OA205AP-22-1WB1868	Aluminum	5.2 lbs	2.4 kg	72 mm	IP68 - Dust Tight Waterproof	Steel	Ball	Tubeaxial	Capacitor Thermal Overload Protector (TOP)	80 W	214.2 Pa	0.86 in H2O	50000 Hrs	3000 RPM	16.52 mł/min	590 CFM	Square	205 mm	205 mm	230 VAC	CE cURus TUV UR	67 dB	2 Wire Leads
Orion Fans OA205AP-22-1TB1868	Aluminum	5.2 lbs	2.4 kg	72 mm	IP68 - Dust Tight Waterproof	Steel	Ball	Tubeaxial	Capacitor Thermal Overload Protector (TOP)	80 W	214.2 Pa	0.86 in H2O	50000 Hrs	3000 RPM	16.52 mł/min	590 CFM	Square	205 mm	205 mm	230 VAC	CE cURus TUV UR	67 dB	2 Terminals
Orion Fans OA205AP-22-1WB1869K	Aluminum	5.2 lbs	2.4 kg	72 mm	IP69K	Steel	Ball	Tubeaxial	Capacitor Thermal Overload Protector (TOP)	80 W	214.2 Pa	0.86 in H2O	50000 Hrs	3000 RPM	16.52 mł/min	590 CFM	Square	205 mm	205 mm	230 VAC	CE cURus TUV UR	67 dB	2 Wire Leads
Orion Fans OA205AP-22-1TB1869K	Aluminum	5.2 lbs	2.4 kg	72 mm	IP69K	Steel	Ball	Tubeaxial	Capacitor Thermal Overload Protector (TOP)	80 W	214.2 Pa	0.86 in H2O	50000 Hrs	3000 RPM	16.52 mł/min	590 CFM	Square	205 mm	205 mm	230 VAC	CE cURus TUV UR	67 dB	2 Terminals
Orion Fans OA205AP-11-1WB1868	Aluminum	5.2 lbs	2.4 kg	72 mm	IP68 - Dust Tight Waterproof	Steel	Ball	Tubeaxial	Capacitor Thermal Overload Protector (TOP)	80 W	214.2 Pa	0.86 in H2O	50000 Hrs	3000 RPM	16.52 mł/min	590 CFM	Square	205 mm	205 mm	115 VAC	CE cURus TUV UR	67 dB	2 Wire Leads
Orion Fans OA205AP-11-1TB1868	Aluminum	5.2 lbs	2.4 kg	72 mm	IP68 - Dust Tight Waterproof	Steel	Ball	Tubeaxial	Capacitor Thermal Overload Protector (TOP)	80 W	214.2 Pa	0.86 in H2O	50000 Hrs	3000 RPM	16.52 mł/min	590 CFM	Square	205 mm	205 mm	115 VAC	CE cURus TUV UR	67 dB	2 Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 161.90
		10	$ 144.33
		25	$ 137.88
		50	$ 133.18

Description

General part information

OA205AP Series

Fan Tubeaxial 115VAC Square - 205mm L x 205mm H Ball 590.0 CFM (16.52m³/min) 2 Terminals
