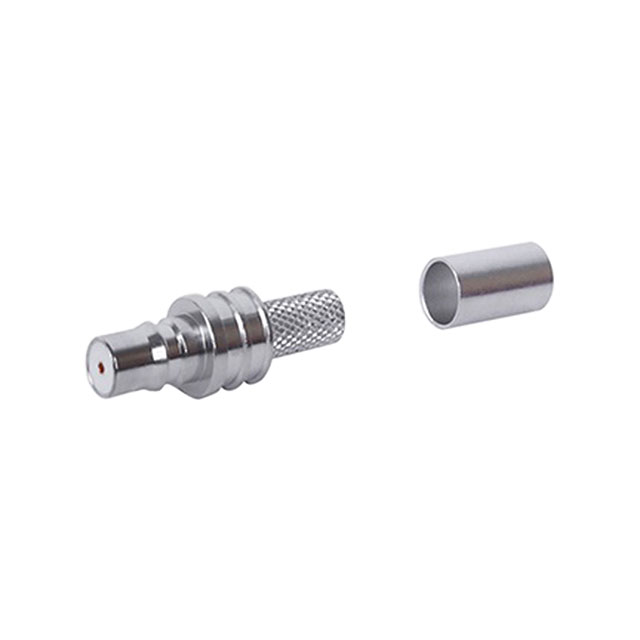

EZ-195-QF-X

Active

Amphenol Times Microwave Systems

QMA-FEMALE (PLUG) CRIMP CONNECTO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EZ-195-QF-X

Active

Amphenol Times Microwave Systems

QMA-FEMALE (PLUG) CRIMP CONNECTO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EZ-195-QF-X

Body Finish	Tin
Body Material	Brass
Cable Group	LMR-200, LMR-195
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	QN
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

EZ-195 Series

Part	Connector Type	Mounting Type	Shield Termination	Number of Ports	Housing Color	Frequency - Max [Max]	Includes	Center Contact Plating	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Cable Group	Contact Termination	Body Finish	Dielectric Material	Center Contact Material	Body Material	Fastening Type
Amphenol Times Microwave Systems EZ-195/200-4310M-X	Male Pin Plug	Free Hanging (In-Line) Right Angle	Crimp	1	Silver	6000 MHz	1 Connector 1 Ferrule	Gold	4.3/10	85 °C	-40 °C	50 Ohms	LMR-195 LMR-200	Crimp
Amphenol Times Microwave Systems EZ-195-TM-X	Jack Male Pin	Free Hanging (In-Line)	Crimp	1	Silver	6000 MHz	1 Connector 1 Ferrule	Gold	RP-TNC	85 °C	-40 °C	50 Ohms	LMR-195	Crimp	White Bronze
Amphenol Times Microwave Systems EZ-195/200-716M-RA-X	Male Pin Plug	Free Hanging (In-Line)	Crimp	1	Silver	6000 MHz	1 Connector 1 Ferrule	Gold	4.3/10	85 °C	-40 °C	50 Ohms	LMR-195 LMR-200	Crimp
Amphenol Times Microwave Systems EZ-195-QF-X	Male Pin Plug	Free Hanging (In-Line)	Crimp	1	Silver	6000 MHz	1 Connector 1 Ferrule	Gold	QN	125 °C	-40 °C	50 Ohms	LMR-195 LMR-200	Crimp	Tin	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass
Amphenol Times Microwave Systems EZ-195-TF-RP-X
Amphenol Times Microwave Systems EZ-195/200-QNM-X	Male Pin Plug	Free Hanging (In-Line) Right Angle	Crimp	1	Silver	6000 MHz	1 Connector 1 Ferrule	Gold	QN	125 °C	-40 °C	50 Ohms	LMR-195 LMR-200	Crimp	Tin	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass
Amphenol Times Microwave Systems EZ-195-QM-X	Female Socket Jack	Free Hanging (In-Line)	Crimp	1	Silver	8 GHz	1 Connector 1 Ferrule	Gold		125 °C	-40 °C	50 Ohms	LMR-195	Crimp	White Bronze	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass	Snap-On
Amphenol Times Microwave Systems EZ-195/200-4310M-RA-X	Male Pin Plug	Free Hanging (In-Line)	Clamp	1	Silver	6000 MHz	1 Connector 1 Ferrule	Gold	4.3/10	85 °C	-40 °C	50 Ohms	LMR-195 LMR-200	Crimp
Amphenol Times Microwave Systems EZ-195-BM-X	Male Pin Plug	Free Hanging (In-Line)	Crimp	1	Silver	4 GHz		Gold	BNC	85 °C	-40 °C	50 Ohms	LMR-195	Push On	White Bronze				Bayonet Lock
Amphenol Times Microwave Systems EZ-195-SM-X	Male Pin Plug	Free Hanging (In-Line)	Crimp	1	Silver	6000 MHz		Gold	SMA	85 °C	-40 °C	50 Ohms	LMR-195	Push On	White Bronze	Polytetrafluoroethylene (PTFE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.51
		10	$ 12.70
		25	$ 11.48
		50	$ 10.66
		100	$ 9.92
		250	$ 9.04
		500	$ 8.45
		1000	$ 7.91

Description

General part information

EZ-195 Series

QN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
