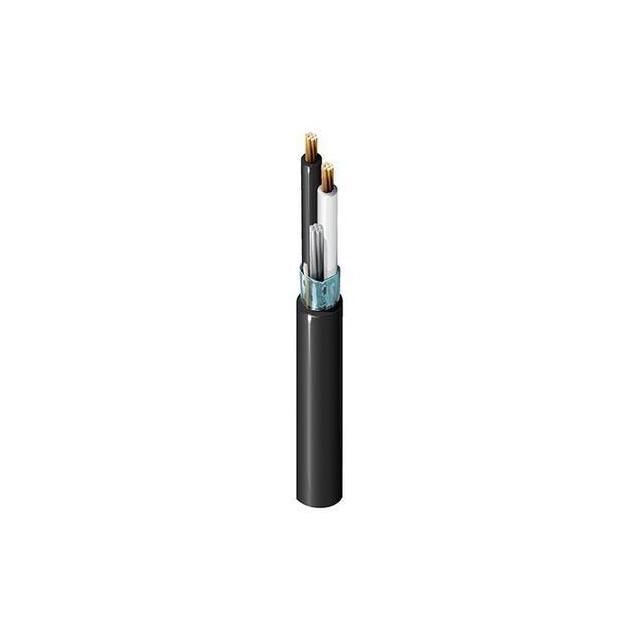

1068A 0105000

Active

Belden Inc.

MULTI-PAIR 48COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 48COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1068A 0105000

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	1.017 in
Jacket (Insulation) Diameter [diameter]	25.83 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.084 in
Jacket (Insulation) Thickness	2.134 mm
Jacket Color	Black
Number of Conductors	48
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	18 AWG

Part	Conductor Material	Shield Type	Shield Coverage	Shield Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Material	Jacket Color	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Number of Conductors
Belden Inc. 1068A 0105000	Copper Bare	Foil	100 %	Aluminum	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	26 AWG	7	18 AWG	Poly-Vinyl Chloride (PVC)	Black	Multi-Pair	1.017 in	25.83 mm	0.084 in	2.134 mm	Drain Wire Rip Cord	48

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 13.70

General part information

48 (24 Pair Twisted) Conductor Multi-Pair Cable Black 18 AWG Foil 5000' (1524.0m)
