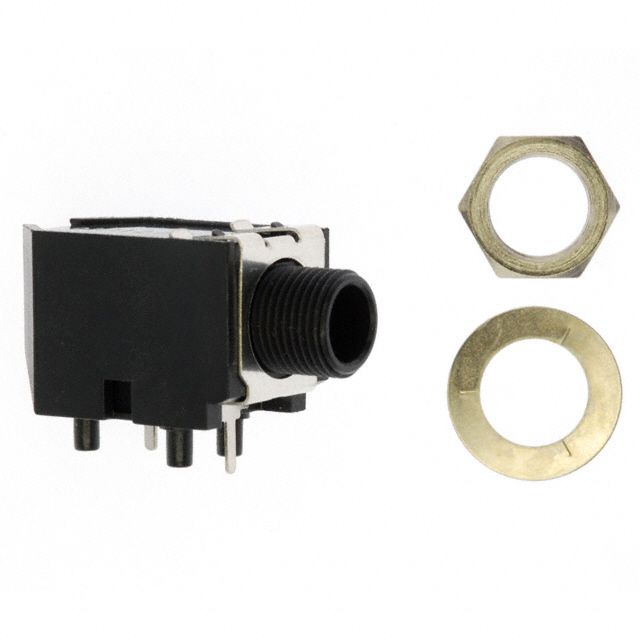

RN111PC

Active

Switchcraft Inc.

CONN JACK MONO 6.35MM R/A

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK MONO 6.35MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	RN111PC

Body Color	Black
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Features	Mounting Hardware
Gender	Female
Housing Material	Thermoplastic
Includes	Connector, Washer, Nut
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Panel Hole Size	0.375 in
Panel Hole Size	9.52 mm
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder
Thread Size	3/8"-32

Part	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Thread Size	Shielding	Mounting Type	Gender	Panel Hole Size	Panel Hole Size	Contact Material - Plating [custom]	Internal Switch(s)	Body Color	Features	Termination	Contact Material	Includes	Signal Lines	Connector Type	Housing Material
Switchcraft Inc. RN111PC	2	2	3/8"-32	Unshielded	Through Hole Right Angle	Female	0.375 in	9.52 mm	Silver		Black	Mounting Hardware	Solder	Copper Alloy	Connector Nut Washer	Mono	Phone Jack	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder
