BB-ACH2-AT-DP003-G

Active

Advantech Corp

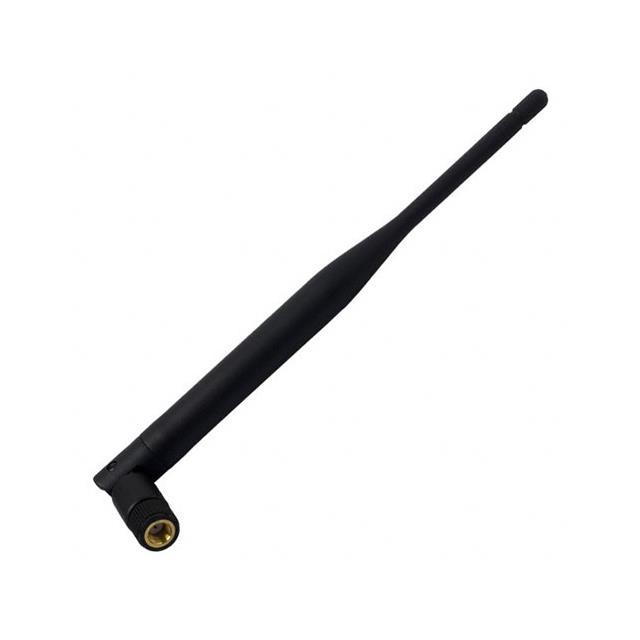

RF ANT 2.4GHZ WHIP TILT RP-SMA

Search across all available documentation for this part.

Active

Advantech Corp

RF ANT 2.4GHZ WHIP TILT RP-SMA

Technical Specifications

Parameters and characteristics for this part

Part	VSWR	Gain	Antenna Type	Frequency Range [Min]	Frequency Range [Max]	Mounting Type	Number of Bands	Termination	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Frequency (Center/Band)
Advantech Corp BB-ACH2-DBAT-DP002	2	2 dBic	Tilt Whip	2.4 GHz 4.9 GHz 5.725 GHz	2.5 GHz 5.35 GHz 5.85 GHz	Connector Mount	2	RP-SMA Male	4 GHz	2 GHz	3 GHz	3.2 in	81.28 mm	2.4 GHz 5 GHz
Advantech Corp BB-ACH2-AT-DP003-G		5 dBi	Tilt Whip			Connector Mount	1	RP-SMA Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Whip, Tilt RP-SMA Male Connector Mount
