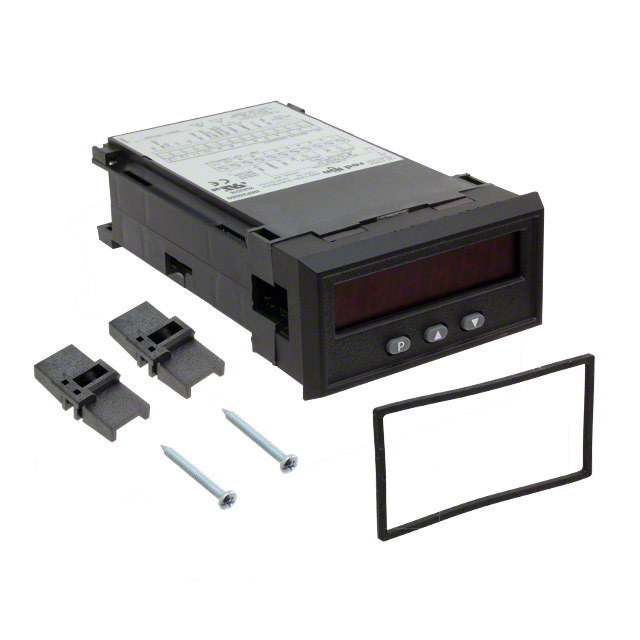

IMD20162

Active

RED LION CONTROLS

AMMETER 2A LED PANEL MOUNT

Search across all available documentation for this part.

Active

RED LION CONTROLS

AMMETER 2A LED PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	IMD20162

Display Characters - Height [z]	14.2 mm
Display Characters - Height [z]	0.56 in
Display Type	LED - Red Characters
Features	Excitation Supply
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	2 A
Measuring Range [Min]	-2 A
Measuring Type	Current
Number of Characters Per Row	6
Output Type [custom]	Relay (2), Solid State (2)
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply	230 VAC
Voltage - Supply	115 VAC

Part	Output Type [custom]	Display Characters - Height [z]	Display Characters - Height [z]	Termination Style	Number of Characters Per Row	Measuring Range [Max]	Measuring Range [Min]	Measuring Type	Display Type	Ingress Protection	Type	Voltage - Supply	Voltage - Supply	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
RED LION CONTROLS IMD20162	Relay (2) Solid State (2)	14.2 mm	0.56 in	Screw Terminal	6	2 A	-2 A	Current	LED - Red Characters	IP65 - Dust Tight Water Resistant	Ammeter	230 VAC	115 VAC	Excitation Supply	92 mm	45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ammeter LED - Red Characters Display Panel Mount

Technical documentation and resources

No documents available
