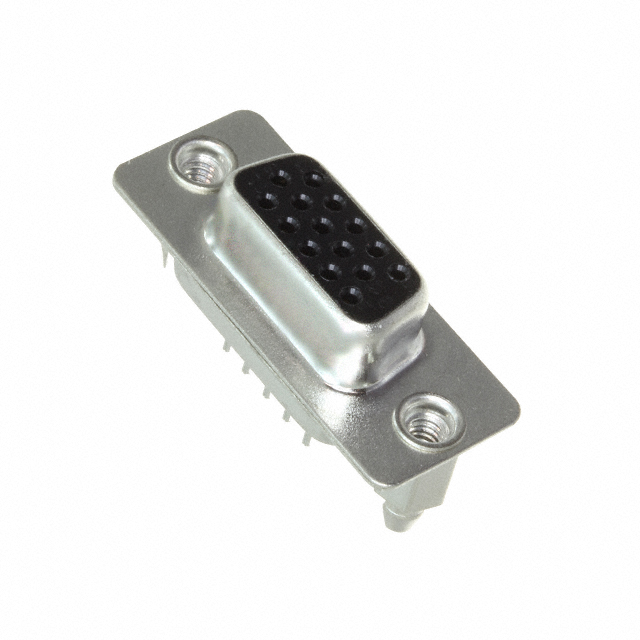

CONN D-SUB HD RCPT 15P VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L77HDEH15SOL2RM5
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD RCPT 15P VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L77HDEH15SOL2RM5 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
| Voltage Rating | 250 VDC |
L77HDEH15 Series
| Part | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Termination | Contact Form | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Number of Positions | Mounting Type | Dielectric Material | Contact Material | Contact Type | Number of Rows | Voltage Rating | Connector Style | Contact Finish | Flange Feature | Color | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Flash | 155 °C | -55 °C | UL94 V-0 | Solder | Stamped | Receptacle Female Sockets | DE E | 1 | High Density | 3 A | 15 | Through Hole | Thermoplastic Glass Filled | Phosphor Bronze | Signal | 3 | 250 VDC | D-Sub High Density | Gold | Board Side (4-40) Mating Side Female Screwlock (4-40) | |||
Amphenol ICC (Commercial Products) | Flash | 105 ░C | -55 °C | UL94 V-0 | Solder | Stamped | Receptacle Female Sockets | DE E | 1 | High Density | 3 A | 15 | Through Hole | Thermoplastic Glass Filled | Brass | Signal | 3 | 250 VDC | D-Sub High Density | Gold | Board Side (4-40) Mating Side Female Screwlock (4-40) | Black | ||
Amphenol ICC (Commercial Products) | Flash | 155 °C | -55 °C | UL94 V-0 | Stamped | Receptacle Female Sockets | DE E | 1 | High Density | 3 A | 15 | Thermoplastic Glass Filled | Phosphor Bronze | Signal | 3 | 250 VDC | D-Sub High Density | Gold | Cable Side (4-40) Mating Side Female Screwlock (4-40) | |||||
Amphenol ICC (Commercial Products) | Flash | 105 ░C | -55 °C | UL94 V-0 | Solder | Stamped | Receptacle Female Sockets | DE E | 1 | High Density | 3 A | 15 | Through Hole | Thermoplastic Glass Filled | Brass | Signal | 3 | 250 VDC | D-Sub High Density | Gold | 4-40 Board Side | Black | ||
Amphenol ICC (Commercial Products) | 105 ░C | -55 °C | UL94 V-0 | Solder | Stamped | Receptacle Female Sockets | DE E | 1 | High Density | 3 A | 15 | Through Hole | Thermoplastic Glass Filled | Brass | Signal | 3 | 250 VDC | D-Sub High Density | Gold | Board Side (4-40) Mating Side Female Screwlock (4-40) | Black | 0.76 Ám | 30 Áin | |
Amphenol ICC (Commercial Products) | Flash | 105 ░C | -55 °C | UL94 V-0 | Solder | Stamped | Receptacle Female Sockets | DE E | 1 | High Density | 3 A | 15 | Through Hole | Thermoplastic Glass Filled | Brass | Signal | 3 | 250 VDC | D-Sub High Density | Gold | 4-40 Board Side | Black |
