15-000433

Active

Amphenol CONEC

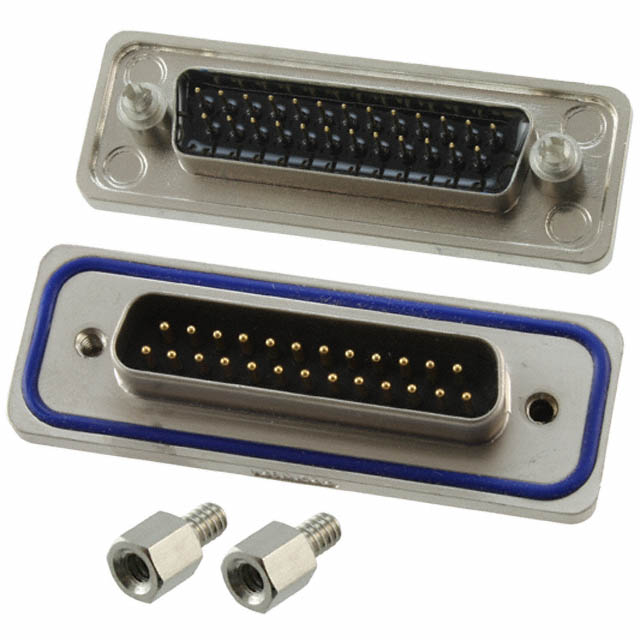

CONN D-SUB PLUG 25P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

15-000433

Active

Amphenol CONEC

CONN D-SUB PLUG 25P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15-000433

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Zinc Die Cast
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	125 VDC

15-0004 Series

Part	Ingress Protection	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Termination	Color	Contact Material	Material Flammability Rating	Mounting Type	Voltage Rating	Contact Finish	Connector Type	Number of Rows	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Contact Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout
Amphenol CONEC 15-000493	IP67 - Dust Tight Waterproof	15	8 çin	0.203 çm	Nickel Plated Zinc Die Cast	Solder	Black	Copper Alloy	UL94 V-0	Panel Mount Through Hole	60 VDC	Gold	Male Pins Plug	3	Polybutylene Terephthalate (PBT) Glass Filled	DE E	1	High Density	D-Sub High Density	Signal	3 A	-25 °C	105 ░C	Female Screwlock (4-40) Mating Side
Amphenol CONEC 15-000483	IP67 - Dust Tight Waterproof	37	8 çin	0.203 çm	Nickel Plated Zinc Die Cast	Solder	Black	Copper Alloy	UL94 V-0	Panel Mount Through Hole	125 VDC	Gold	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT) Glass Filled				D-Sub	Signal	7.5 A	-25 °C	105 ░C	Female Screwlock (4-40) Mating Side	4 (DC C)
Amphenol CONEC 15-000473	IP67 - Dust Tight Waterproof		8 çin	0.203 çm	Nickel Plated Zinc Die Cast	Solder	Black	Copper Alloy	UL94 V-0	Panel Mount Through Hole	125 VDC	Gold	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT) Glass Filled				D-Sub	Signal	7.5 A	-25 °C	105 ░C	Female Screwlock (4-40) Mating Side		B DB	3
Amphenol CONEC 15-000423	IP67 - Dust Tight Waterproof	15	8 çin	0.203 çm	Nickel Plated Zinc Die Cast	Solder	Black	Copper Alloy	UL94 V-0	Panel Mount Through Hole	125 VDC	Gold	Male Pins Plug	2	Polybutylene Terephthalate (PBT) Glass Filled				D-Sub	Signal	7.5 A	-25 °C	105 ░C	Female Screwlock (4-40) Mating Side				2
Amphenol CONEC 15-000413	IP67 - Dust Tight Waterproof	9	8 çin	0.203 çm	Nickel Plated Zinc Die Cast	Solder	Black	Copper Alloy	UL94 V-0	Panel Mount Through Hole	125 VDC	Gold	Male Pins Plug	2	Polybutylene Terephthalate (PBT) Glass Filled				D-Sub	Signal	7.5 A	-25 °C	105 ░C	Female Screwlock (4-40) Mating Side		DE E	1
Amphenol CONEC 15-000443	IP67 - Dust Tight Waterproof	37	8 çin	0.203 çm	Nickel Plated Zinc Die Cast	Solder	Black	Copper Alloy	UL94 V-0	Panel Mount Through Hole	125 VDC	Gold	Male Pins Plug	2	Polybutylene Terephthalate (PBT) Glass Filled				D-Sub	Signal	7.5 A	-25 °C	105 ░C	Female Screwlock (4-40) Mating Side	4 (DC C)
Amphenol CONEC 15-000453	IP67 - Dust Tight Waterproof	9	8 çin	0.203 çm	Nickel Plated Zinc Die Cast	Solder	Black	Copper Alloy	UL94 V-0	Panel Mount Through Hole	125 VDC	Gold	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT) Glass Filled				D-Sub	Signal	7.5 A	-25 °C	105 ░C	Female Screwlock (4-40) Mating Side		DE E	1
Amphenol CONEC 15-000463	IP67 - Dust Tight Waterproof	15	8 çin	0.203 çm	Nickel Plated Zinc Die Cast	Solder	Black	Copper Alloy	UL94 V-0	Panel Mount Through Hole	125 VDC	Gold	Receptacle Female Sockets	2	Polybutylene Terephthalate (PBT) Glass Filled				D-Sub	Signal	7.5 A	-25 °C	105 ░C	Female Screwlock (4-40) Mating Side				2
Amphenol CONEC 15-000433	IP67 - Dust Tight Waterproof		8 çin	0.203 çm	Nickel Plated Zinc Die Cast	Solder	Black	Copper Alloy	UL94 V-0	Panel Mount Through Hole	125 VDC	Gold	Male Pins Plug	2	Polybutylene Terephthalate (PBT) Glass Filled				D-Sub	Signal	7.5 A	-25 °C	105 ░C	Female Screwlock (4-40) Mating Side		B DB	3
