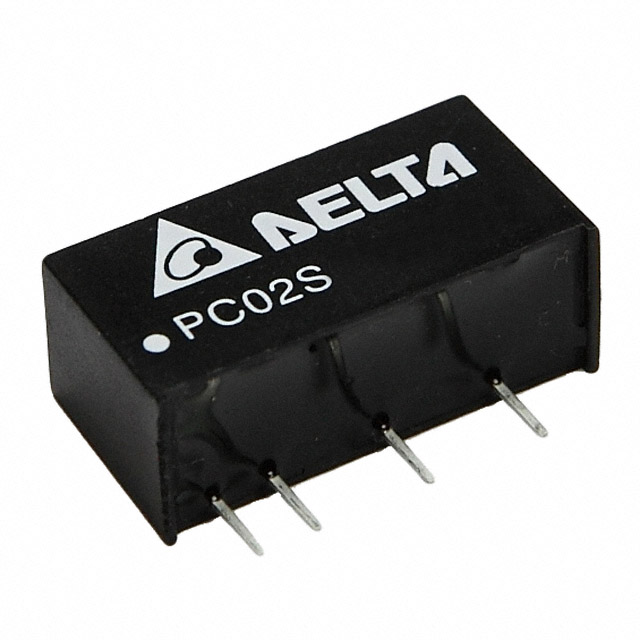

PC02S0503A

Active

Delta Electronics

DC DC CONVERTER 3.3V 2W

Search across all available documentation for this part.

Active

Delta Electronics

DC DC CONVERTER 3.3V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max)	Power (Watts)	Package / Case	Voltage - Output 1	Applications	Voltage - Isolation	Features	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output (Max) [Max]	Efficiency
Delta Electronics PC02S1212A	Through Hole	13.2 V	10.8 V	165 mA	2 W	6-SIP Module 5 Leads	12 V	Medical	1000 V	SCP	1	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	85 °C	-40 °C	Isolated Module
Delta Electronics PC02S0503A	Through Hole	5.5 V	4.5 V		2 W	6-SIP Module 5 Leads	3.3 V	Medical	1000 V	SCP	1	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	85 °C	-40 °C	Isolated Module	500 mA	73 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 6.64

General part information

Isolated Module DC DC Converter 1 Output 3.3V 500mA 4.5V - 5.5V Input
