ASMT-QWBC-NJKLE

Active

Broadcom Limited

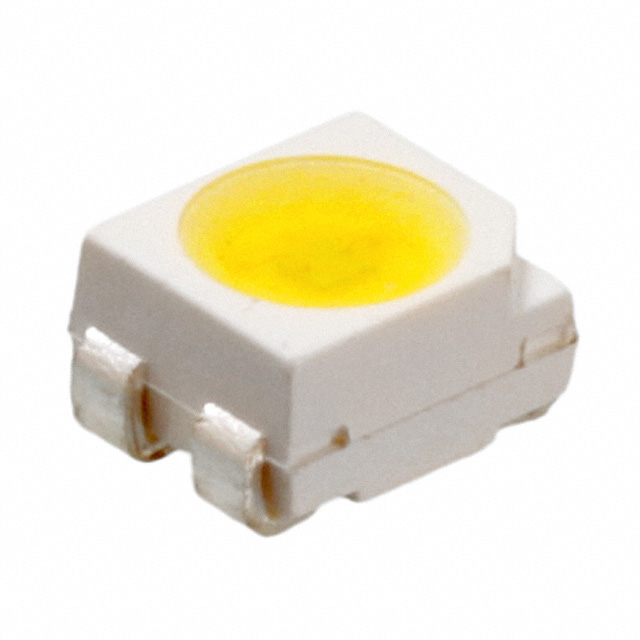

LED COOL WHITE 7250K 4PLCC

Search across all available documentation for this part.

Active

Broadcom Limited

LED COOL WHITE 7250K 4PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	ASMT-QWBC-NJKLE

CCT (K)	7250 K
Color	Cool, White
Current - Max [Max]	150 mA
Current - Test	150 mA
Flux @ 25°C, Current - Test	45 lm
Flux @ 25°C, Current - Test [Max]	56 lm
Flux @ 25°C, Current - Test [Min]	33 lm
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lumens/Watt @ Current - Test	88 lm/W
Mounting Type	Surface Mount
Package / Case	4-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Supplier Device Package	4-PLCC
Thermal Resistance of Package	40 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.4 V

Part	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Supplier Device Package	Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	Thermal Resistance of Package	CCT (K)	Lumens/Watt @ Current - Test	Current - Test	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]
Broadcom Limited ASMT-QWBC-NJKYE	2.1 mm	2.8 mm	3.2 mm	Surface Mount	4-PLCC	4-PLCC
Broadcom Limited ASMT-QWBC-NJKLE		0.11 in	0.126 in	Surface Mount	4-PLCC	4-PLCC	Cool White	3.4 V	120 °	40 °C/W	7250 K	88 lm/W	150 mA	150 mA	2.1 mm	0.083 "	3.2 mm	2.8 mm	56 lm	45 lm	33 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting - White, Cool 7250K (4500K ~ 10000K) 3.4V 150mA 120° 4-PLCC
