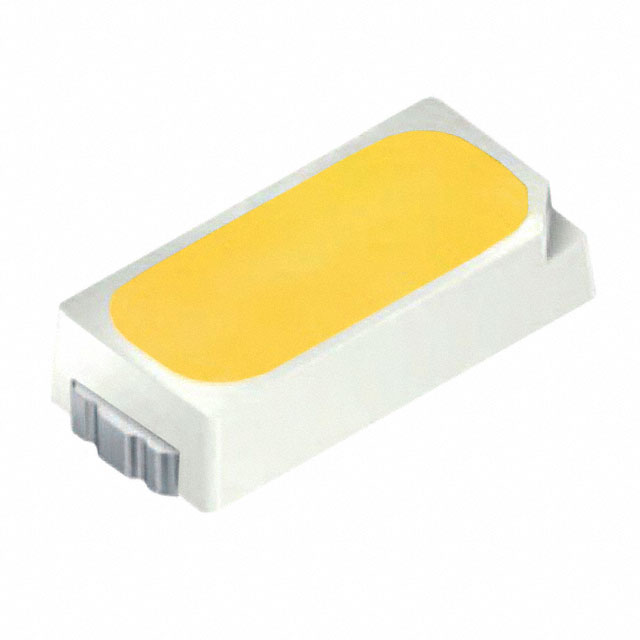

GW JCLPS2.EM-HPHR-XX31-1-65-R18-XX

Active

ams-OSRAM USA INC.

LED DURIS E2 WHITE SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED DURIS E2 WHITE SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current - Test	Viewing Angle	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Supplier Device Package	Color	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Max [Max]	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	CCT (K)	Thermal Resistance of Package	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]
ams-OSRAM USA INC. GW JCLPS2.EM-GUHQ-XX37-1-65-R18-XX	65 mA	120 °	80	153 lm/W	SMD	White	0.055 in	1.4 mm	2.8 mm	0.11 in	150 mA	30 lm	0.7 mm	0.028 in	Surface Mount	2815 Metric	1106	3.02 V
ams-OSRAM USA INC. GW JCLPS2.EM-HPHR-XX31-1-65-R18-XX	65 mA	120 °	80	163 lm/W	SMD	White	0.055 in	1.4 mm	2.8 mm	0.11 in	150 mA	32 lm	0.7 mm	0.028 in	Surface Mount	2815 Metric	1106	3.02 V
ams-OSRAM USA INC. GW JCLPS2.EM-H3H8-XX53-1-65-2-R33	65 mA	120 °	80	193 lm/W	SMD	Neutral White	0.055 in	1.4 mm	2.8 mm	0.11 in	150 mA	37 lm	0.7 mm	0.028 in	Surface Mount	2815 Metric	1106	2.95 V	4000 K	34 °C/W	41 lm	32 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting DURIS® E 2 White 3.02V 65mA 120° 1106 (2815 Metric)
