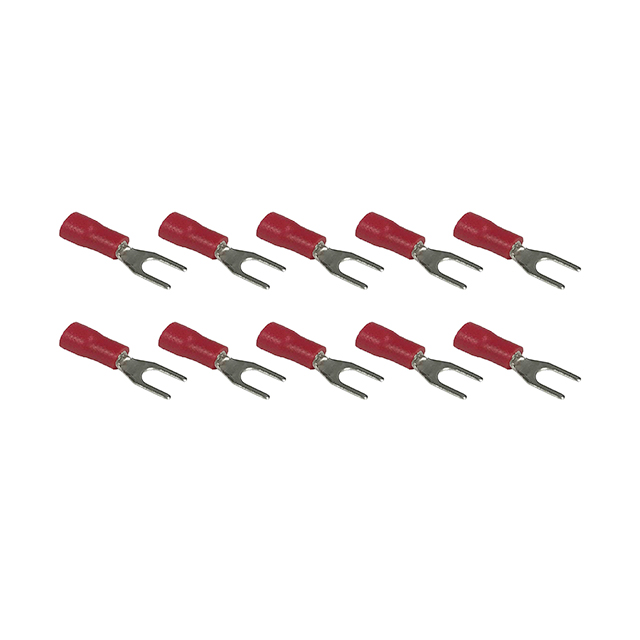

SVS1.25-5-10

Active

Remington Industries

FORK TERMINALS, PVC INSULATED, 1

Search across all available documentation for this part.

Active

Remington Industries

FORK TERMINALS, PVC INSULATED, 1

Technical Specifications

Parameters and characteristics for this part

Part	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges	Width - Outer Edges [x]	Contact Material	Mounting Type	Termination	Color	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Contact Finish	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Stud/Tab Size	Insulation	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]
Remington Industries SVS1.25-5-100	Standard	22 AWG	16 AWG	8.1 mm	0.319 "	Copper	Free Hanging (In-Line)	Crimp	Red	Poly-Vinyl Chloride (PVC)	0.827 in	21 mm	Tin	5.31 mm	0.209 in	10 Stud	Insulated
Remington Industries SVS1.25-4-10	Standard	22 AWG	16 AWG			Copper	Free Hanging (In-Line)	Crimp	Red	Poly-Vinyl Chloride (PVC)	0.827 in	21 mm	Tin	4.29 mm	0.169 in		Insulated	8 Stud	0.252 in	6.4 mm
Remington Industries SVS1.25-4-100	Standard	22 AWG	16 AWG			Copper	Free Hanging (In-Line)	Crimp	Red	Poly-Vinyl Chloride (PVC)	0.827 in	21 mm	Tin	4.29 mm	0.169 in		Insulated	8 Stud	0.252 in	6.4 mm
Remington Industries SVS1.25-5-10	Standard	22 AWG	16 AWG	8.1 mm	0.319 "	Copper	Free Hanging (In-Line)	Crimp	Red	Poly-Vinyl Chloride (PVC)	0.827 in	21 mm	Tin	5.31 mm	0.209 in	10 Stud	Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.36

General part information

Red 10 Stud Spade Terminal Connector Crimp 16-22 AWG
