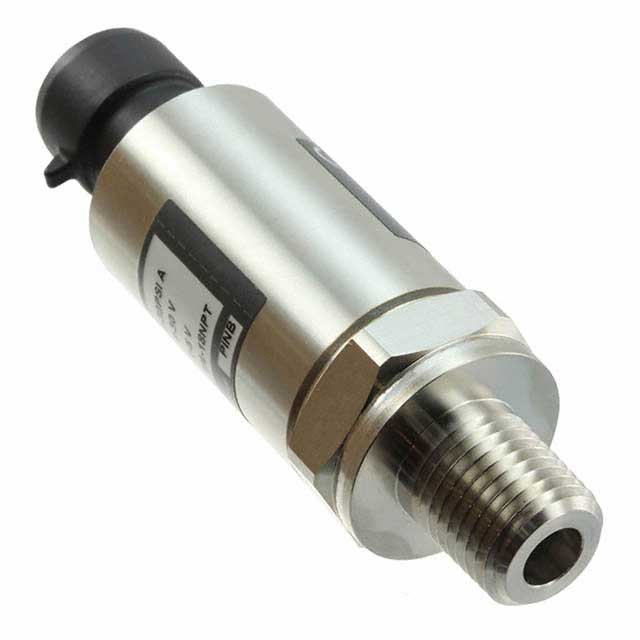

U5254-000005-200PA

Active

TE Connectivity Measurement Specialties

SENSOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

U5254-000005-200PA

Active

TE Connectivity Measurement Specialties

SENSOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	U5254-000005-200PA

Accuracy	0.1 %
Applications	Industrial Automation
Features	Temperature Compensated
Maximum Pressure	600 PSI
Maximum Pressure	4136.85 kPa
Operating Pressure	1378.95 kPa
Operating Pressure	200 PSI
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	20 mA
Output [Min]	4 mA
Output Type	Analog Current
Package / Case	Cylinder
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	9 V

U5254 Series

Part	Accuracy	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Output [Max]	Output [Min]	Operating Pressure	Operating Pressure	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Port Style	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Package / Case	Port Size	Port Size	Pressure Type	Maximum Pressure	Maximum Pressure
TE Connectivity Measurement Specialties U5254-000005-030PA	0.1 %	30 VDC	9 V	Connector	Temperature Compensated	125 °C	-40 °C	20 mA	4 mA	206.84 kPa	30 PSI	Analog Current	90 PSI	620.53 kPa	Industrial Automation	Threaded	NPT	0.25 "	6.35 mm	Male	Cylinder
TE Connectivity Measurement Specialties U5254-000002-014BA	0.1 %	30 VDC	9 V	Connector	Temperature Compensated	125 °C	-40 °C	20 mA	4 mA	1400 kPa	203.05 PSI	Analog Current	609.16 PSI	4200 kPa	Industrial Automation	Threaded					Cylinder	BSPP Male	6.35 mm
TE Connectivity Measurement Specialties U5254-000002-.14BG	0.5 %	30 VDC	9 V	Connector	Temperature Compensated	125 °C	-40 °C	20 mA	4 mA	14 kPa	2.03 PSI	Analog Current	6.09 PSI	42 kPa	Industrial Automation	Threaded					Cylinder	BSPP Male	6.35 mm	Vented Gauge
TE Connectivity Measurement Specialties U5254-000005-200PA	0.1 %	30 VDC	9 V	Connector	Temperature Compensated	125 °C	-40 °C	20 mA	4 mA	1378.95 kPa	200 PSI	Analog Current			Industrial Automation	Threaded	NPT	0.25 "	6.35 mm	Male	Cylinder				600 PSI	4136.85 kPa
TE Connectivity Measurement Specialties U5254-000005-005PG	0.25 %	30 VDC	9 V	Connector	Temperature Compensated	125 °C	-40 °C	20 mA	4 mA	34.47 kPa	5 PSI	Analog Current	15 PSI		Industrial Automation	Threaded	NPT	0.25 "	6.35 mm	Male	Cylinder			Vented Gauge		103.42 kPa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 175.26
		10	$ 160.65

Description

General part information

U5254 Series

SENSOR

Documents

Technical documentation and resources
